Hard disk drives (HDD) and solid state drives (SSD)
Ê Position the mounted SAS expander board in the two recesses (see circles)
of the SAS expander holder (1).
Ê Push the mounted SAS expander board on the SAS expander holder (2).
Figure 86: Installing the SAS expander board (C)
Ê Match the two screw holes of the connector card with the holes in the SAS
expander holder.

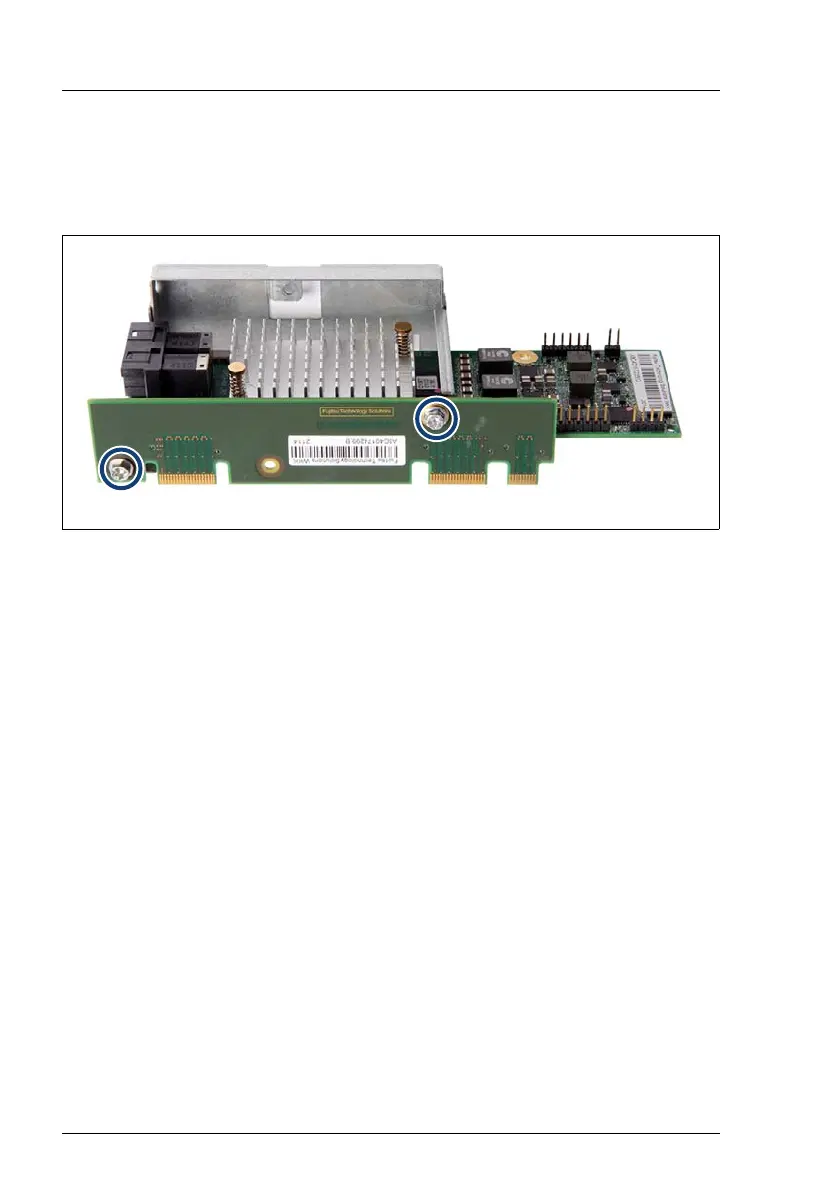

Ê Fasten the mounted SAS expander board with two screws on the SAS
expander holder (see circles).
7.3.4.5 Installing the SAS expander board
Ê Install the SAS expander board as described in section "Installing the SAS
expander board" on page 178.
7.3.4.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Resuming BitLocker functionality" on page 120
