RX2540 M2 Upgrade and Maintenance Manual 213
Hard disk drives (HDD) and solid state drives (SSD)
Ê Connect power cable C37 to system board connector PWR 12V 2.
Ê Connect the cable bundle C36 to the PCIe backplane:
7.5.3.4 Connecting cables to the PCIe switch

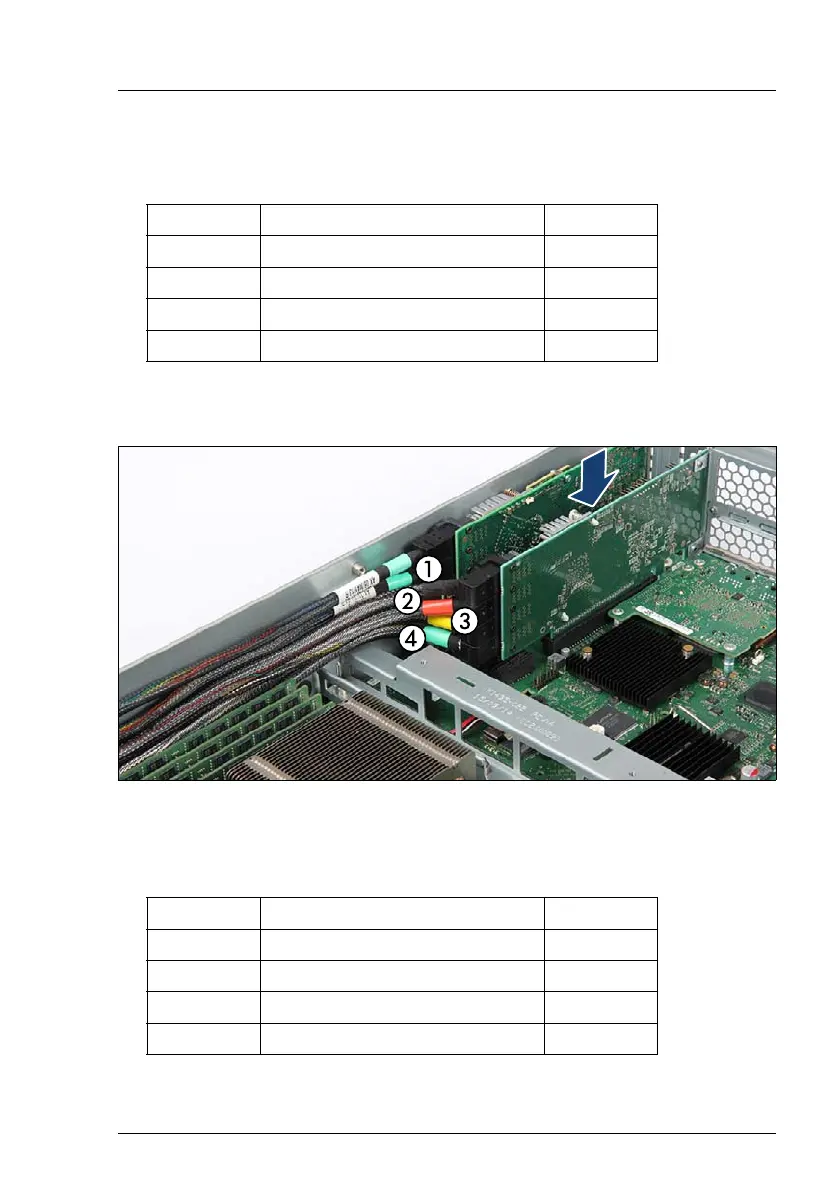

Figure 114: Connecting cables to the PCIe switch
Ê Install the PCIe switch see section "Expansion cards" on page 255.
Ê Connect the cable bundle C36 to the PCIe switch:
Plug Connector on PCIe backplane Color
P0 X1 black
P1 X2 red
P2 X3 yellow
P3 X4 green
Plug Connector on PCIe switch Color
P0 X1 black
P1 X2 red
P2 X3 yellow
P3 X4 green
