138 Upgrade and Maintenance Manual RX2540 M2
6.3.3 Removing a hot-plug PSU
Ê Remove the power cord from the dedicated PSU as described in section
"Disconnecting the power cord" on page 66.

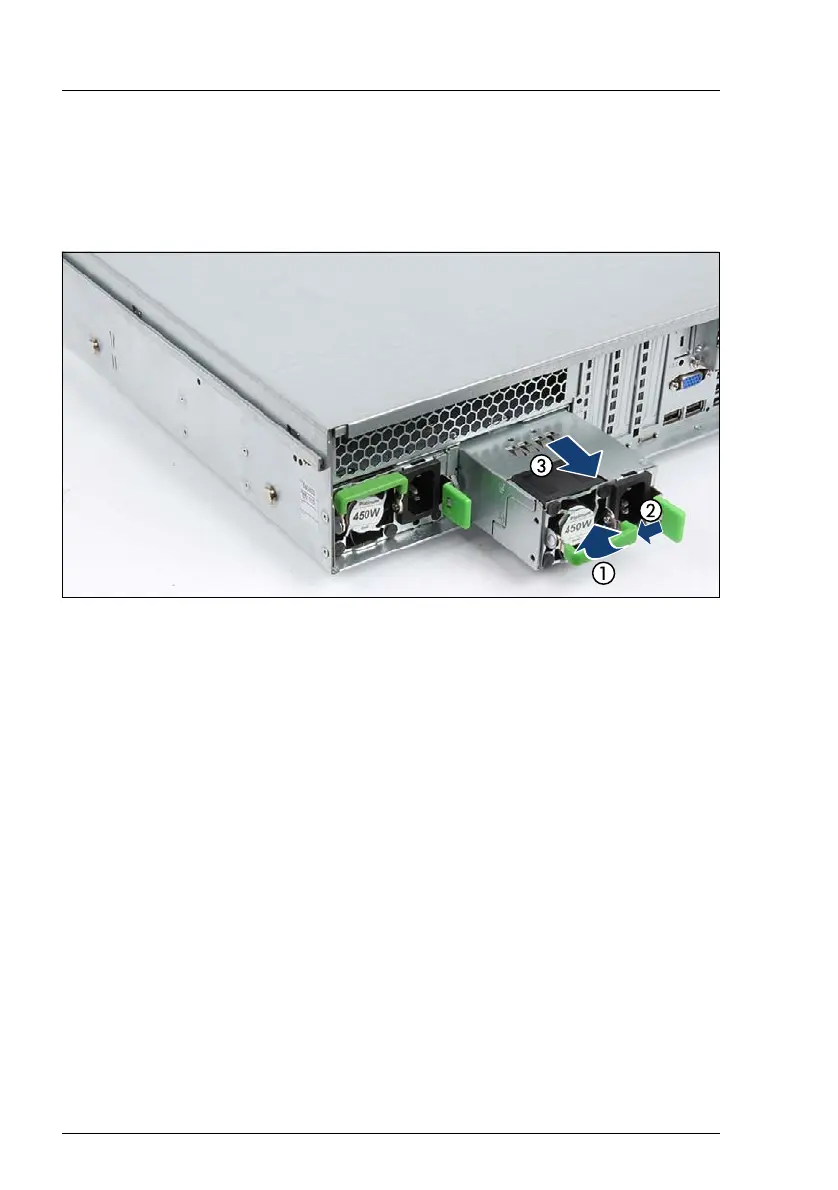

Figure 40: Removing the hot-plug PSU
Ê Push the handle of the PSU halfway upward in the direction of the arrow (1).
Ê Push the green release latch in direction of the arrow (2).
Ê Grip the handle and pull out the PSU in the direction of the arrow (3).
V CAUTION!
Never leave the bay for the PSU empty for more than two minutes during
operation. Otherwise, excessive temperatures could damage system
components.
