Fujitsu PRIMERGY RX2540 M2

212 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)

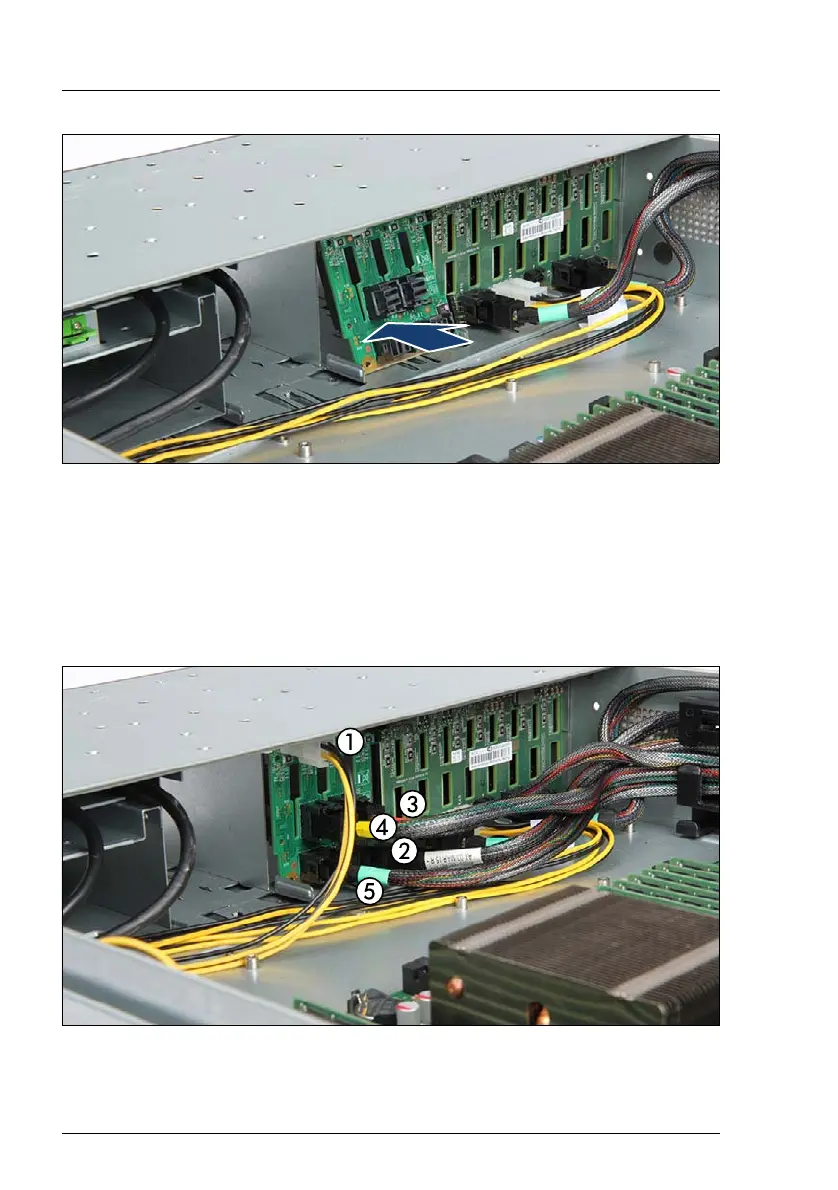

Figure 112: Installing the PCIe backplane
Ê At a slight angle insert the backplane in the three recesses (see figure 111
on page 211) at the top.
Ê Fold back the backplane on the bottom until it rests in the hook.
7.5.3.3 Connecting cables to PCIe backplane
Figure 113: Connecting cables to the PCIe backplane
Ê Connect power cable C37 (1) to the PCIe backplane.
