318 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.7.2.3 Preparing the FBU

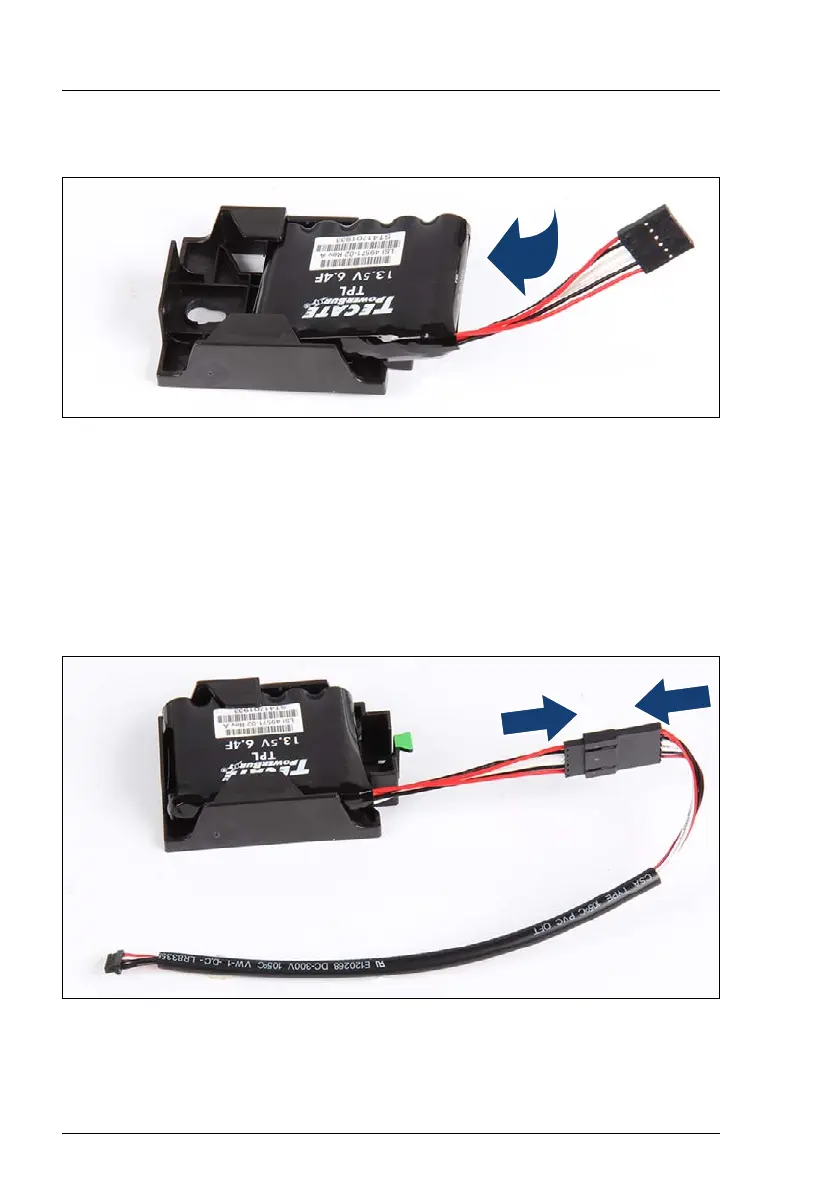

Figure 213: Installing the FBU in the FBU holder
Ê At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.
Ê Push in the FBU until it locks in place.
Ê Ensure that the FBU is properly seated in the holder.
8.7.2.4 Connecting the FBU to the RAID controller
Figure 214: Connecting the FBU adapter cable
Ê Connect the cable end to the FBU adapter cable as shown.
