RX2540 M2 Upgrade and Maintenance Manual 479
Front panel and external front connectors
13.5.1.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 95
Ê "Disabling SVOM boot watchdog functionality" on page 96
Ê "Locating the defective server" on page 61
Ê "Shutting down the server" on page 65
Ê "Disconnecting the power cord" on page 66
Ê "Getting access to the component" on page 68
Ê "Removing the fan box" on page 397
13.5.1.2 Removing the front panel cage
Ê Remove the ID card, see figure 437 on page 578.

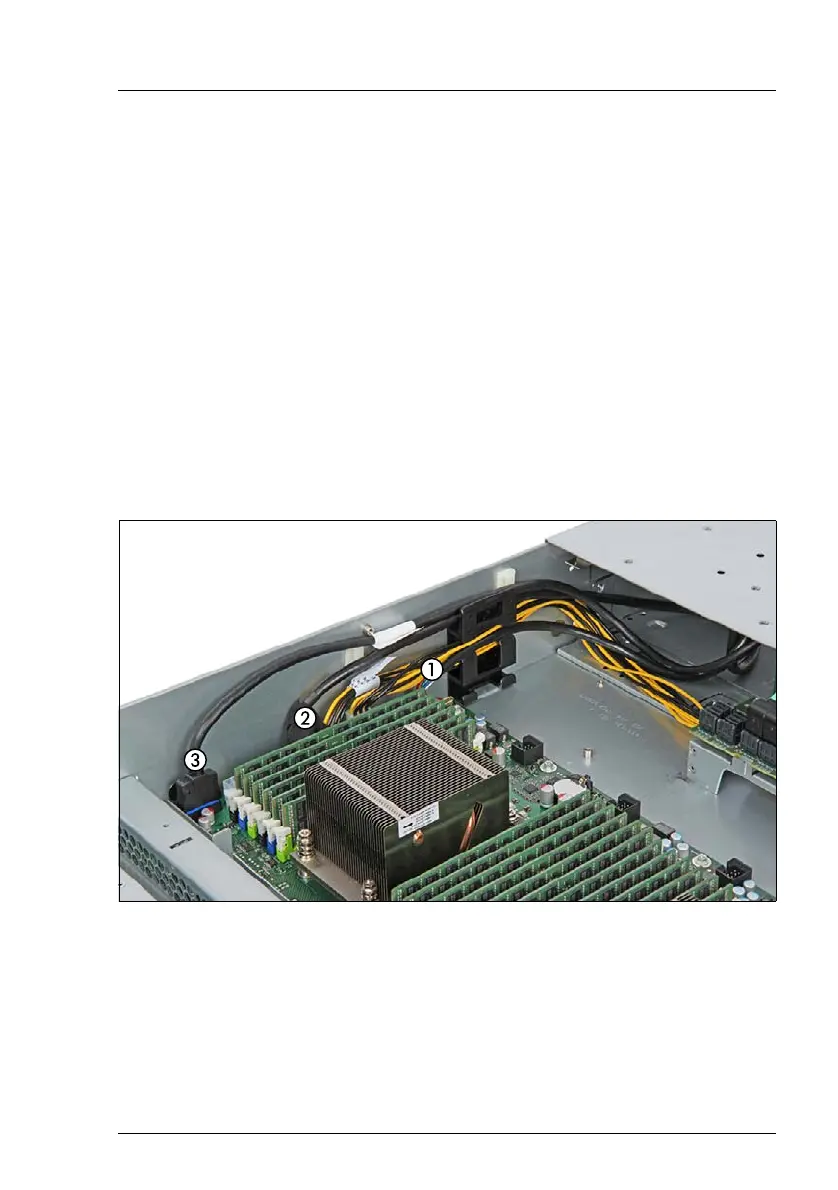

Figure 354: Disconnecting the front panel cables
Ê Disconnect the front panel cable from the system board (1).
Ê If applicable, disconnect the front VGA cable from the system board (2).
Ê Disconnect the front USB3.0 cable from the system board (3).
