Front panel and external front connectors
13.1.1.2 Removing the front panel module

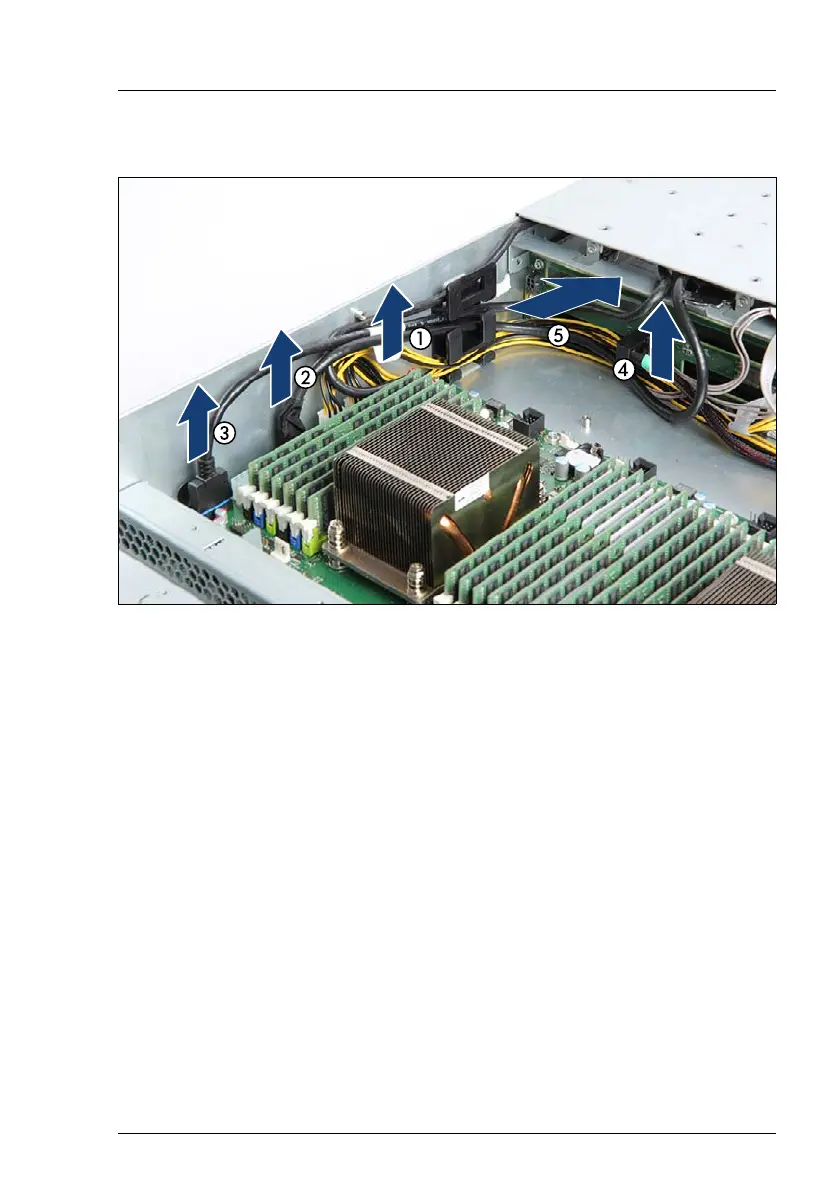

Figure 334: Disconnecting the front panel cable
Ê Disconnect the front panel cable from the system board (1).
Ê If applicable, disconnect the front VGA cable from the system board (2).
Ê If applicable, disconnect the front USB3.0 cable from the system board (3).
