Fujitsu PRIMERGY RX2540 M2

174 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.3.3.2 Removing the SAS expander board

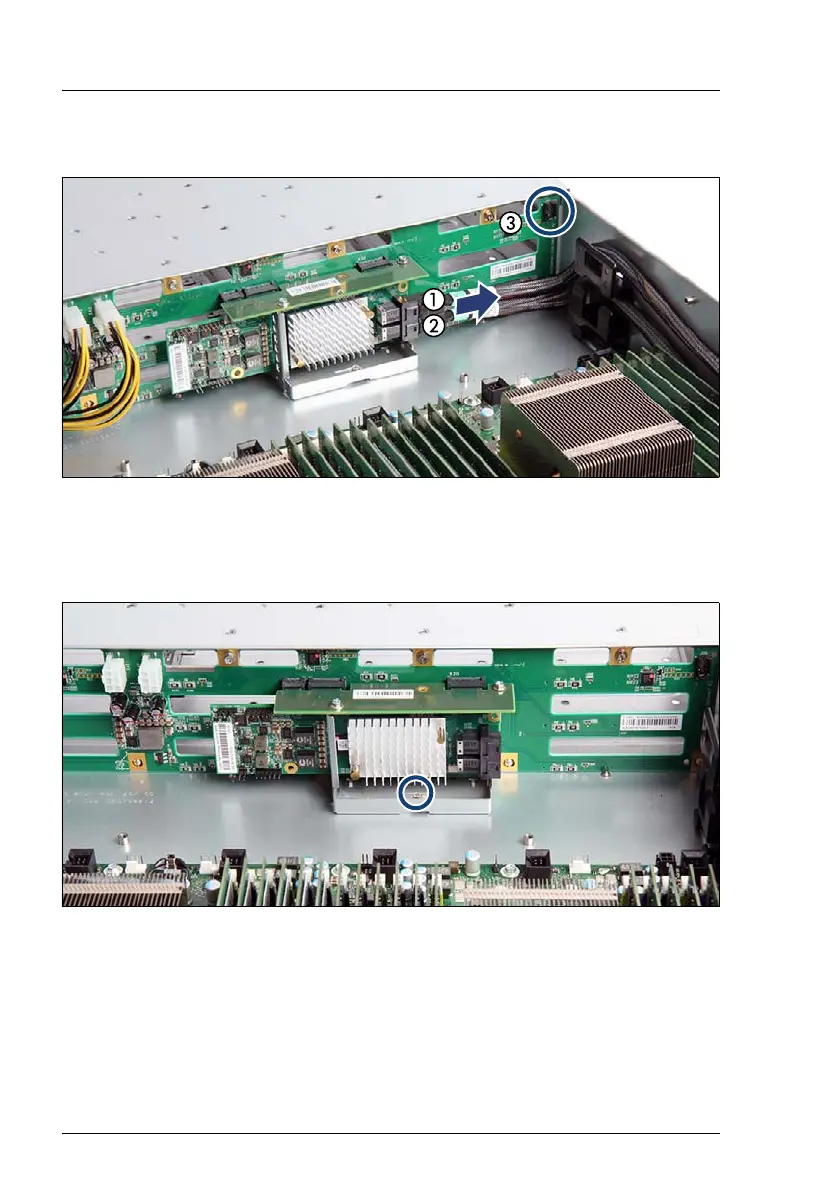

Figure 69: Disconnecting SAS cables
Ê Disconnect the two SAS cables from the SAS expander board (1, 2).
Ê If applicable, disconnect the OOB cable from the backplane (3).
Figure 70: Removing the SAS expander holder (A)
Ê Remove the screw from the SAS expander holder (see circle).
