474 Upgrade and Maintenance Manual RX2540 M2
Front panel and external front connectors
13.4.1.4 Installing the front USB3.0 connector

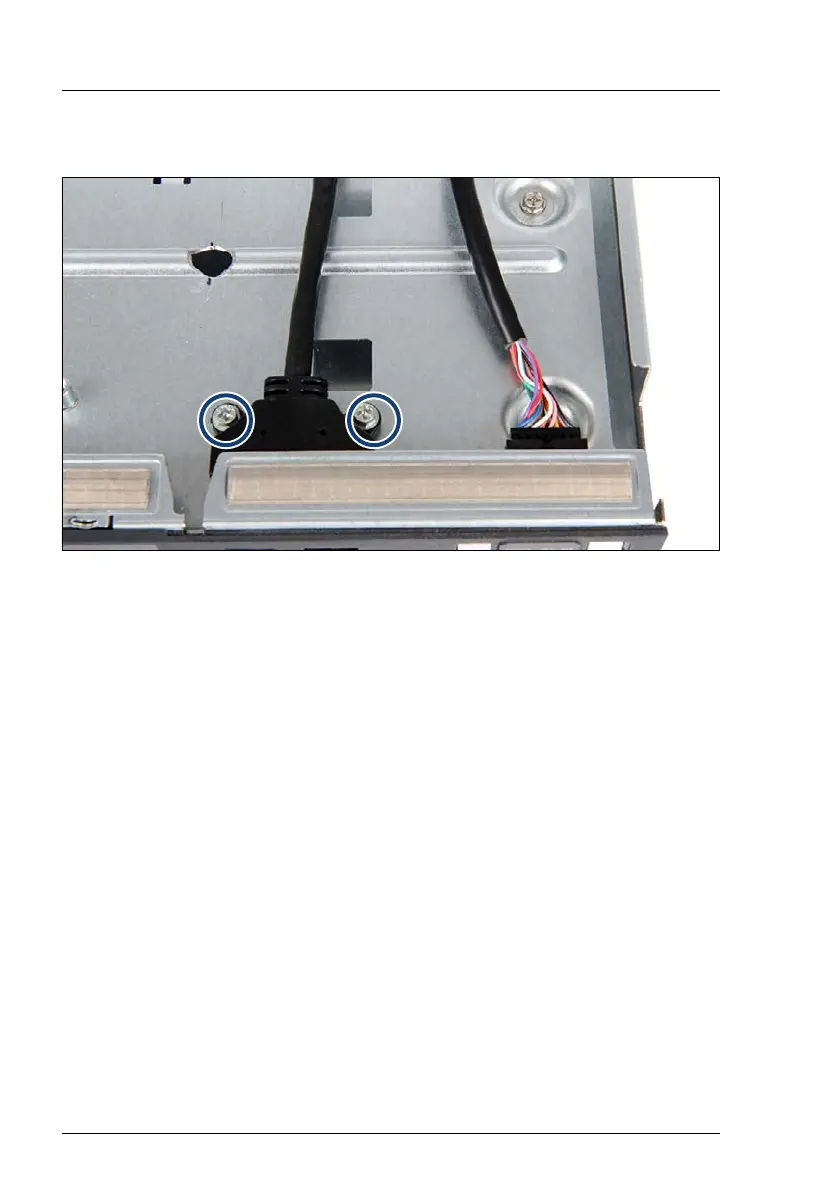

Figure 352: Fasten the front USB3.0 connector
Ê Fasten the front USB3.0 connector with two screws.
V CAUTION!
Do not fasten the screw too firmly (screw torque 0.4 Nm)!
13.4.1.5 Installing the front panel module
Ê "Installing the front panel module" on page 458
13.4.1.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Resuming BitLocker functionality" on page 120
