292 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units

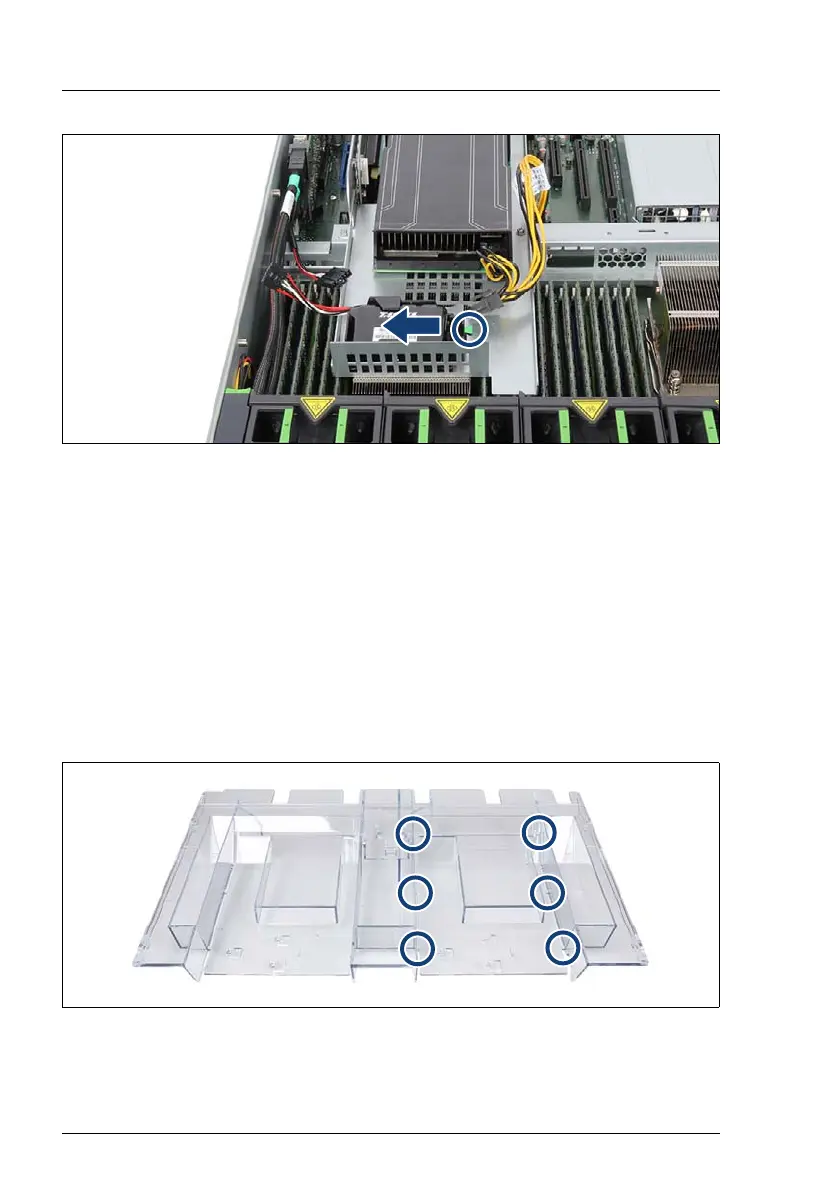

Figure 188: Installing the FBU with the holder
Ê Insert the holder into the chassis so that the three shoulder screw caps on
the chassis floor rest in the wide ends of the keyhole slots on the holder.
Ê Slide the holder in direction of the arrow.
The shoulder screw caps on the chassis floor will lock in the narrow ends of
the keyhole slots on the holder.
Ê Ensure that the locking handle on the holder properly snaps in place (see
circle).
8.6.1.10 Installing the air duct riser module 1
Figure 189: Preparing the air duct for riser module 1
Ê Break out the blind cover on the right side from the air duct using a side
cutter (see circles).
