Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 167
Hard disk drives (HDD) and solid state drives (SSD)

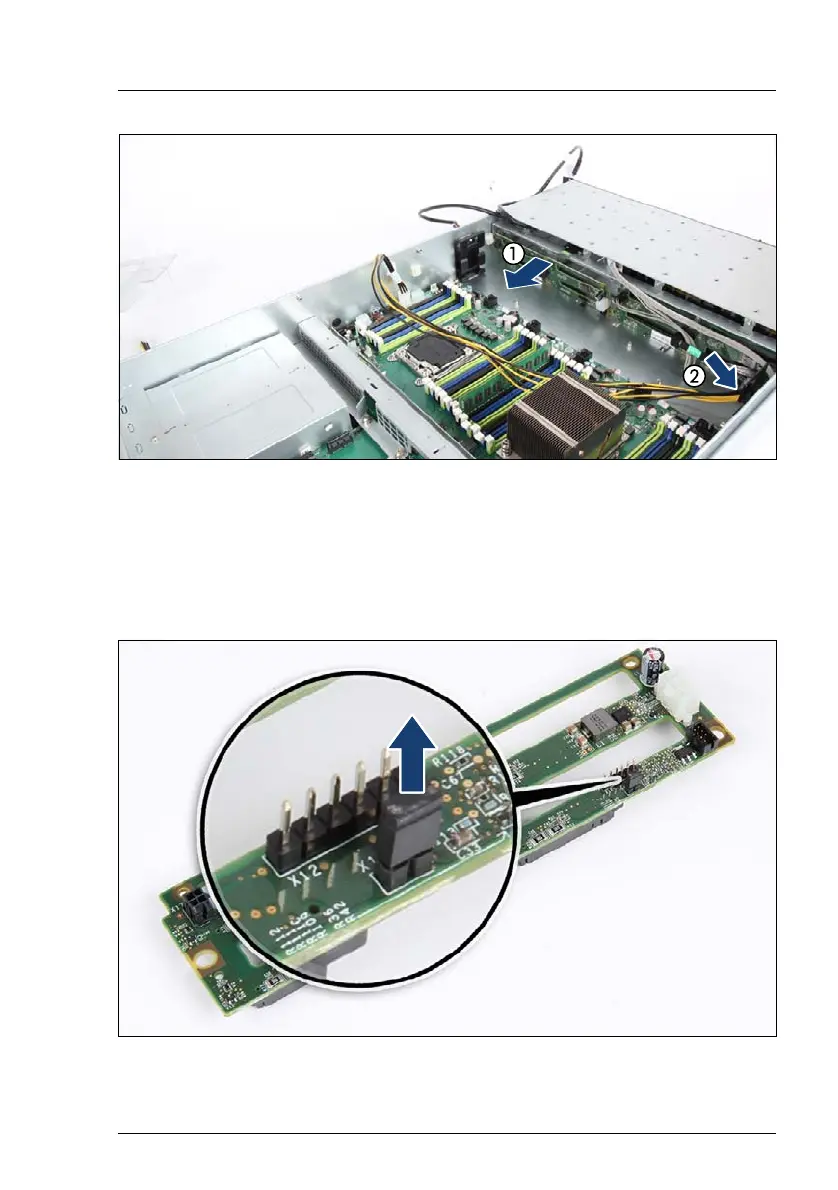

Figure 63: Removing the 4x 3.5-inch HDD SAS backplane 2
Ê Remove the 4x 3.5-inch HDD SAS backplane 2 (1).
I Take care that the OOB connector will not be damaged! (2)
7.3.1.5 Installing the 4x 3.5-inch HDD SAS backplane 2
Figure 64: Jumper on the 4x 3.5-inch HDD SAS backplane
