RX2540 M2 Upgrade and Maintenance Manual 221
Hard disk drives (HDD) and solid state drives (SSD)

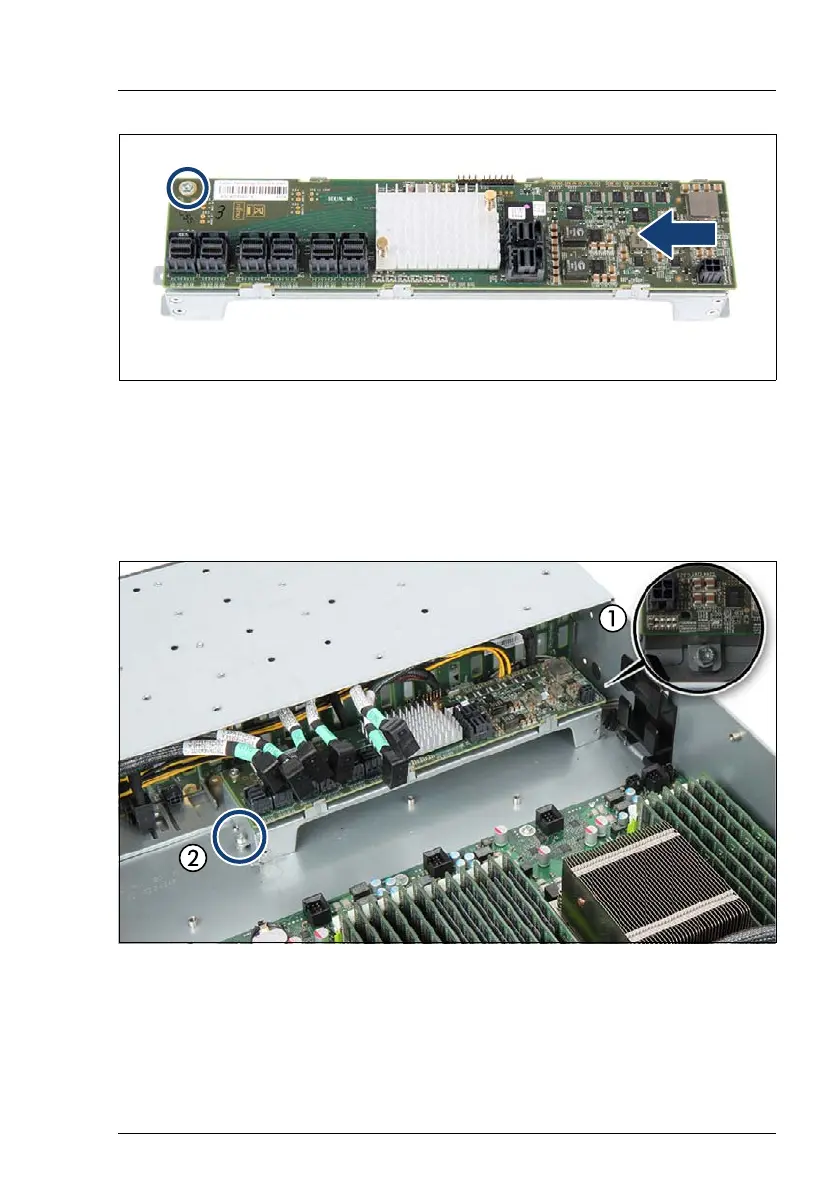

Figure 120: Installing the SAS expander board
Ê Push the SAS expander board in the direction of the arrow.
Ê Fasten the SAS expander board with one screw (see circle).
7.5.6.5 Installing the SAS expander holder
Figure 121: Installing the SAS expander holder
Ê Slide the SAS expander holder in the chassis until the recess fits under the
screw (see close-up 1).
Ê Fasten the SAS expander holder with the two screws (1, 2).
