Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 285
Expansion cards and backup units
8.6.1.3 Installing a riser card with one PCIe slot Gen3 x16

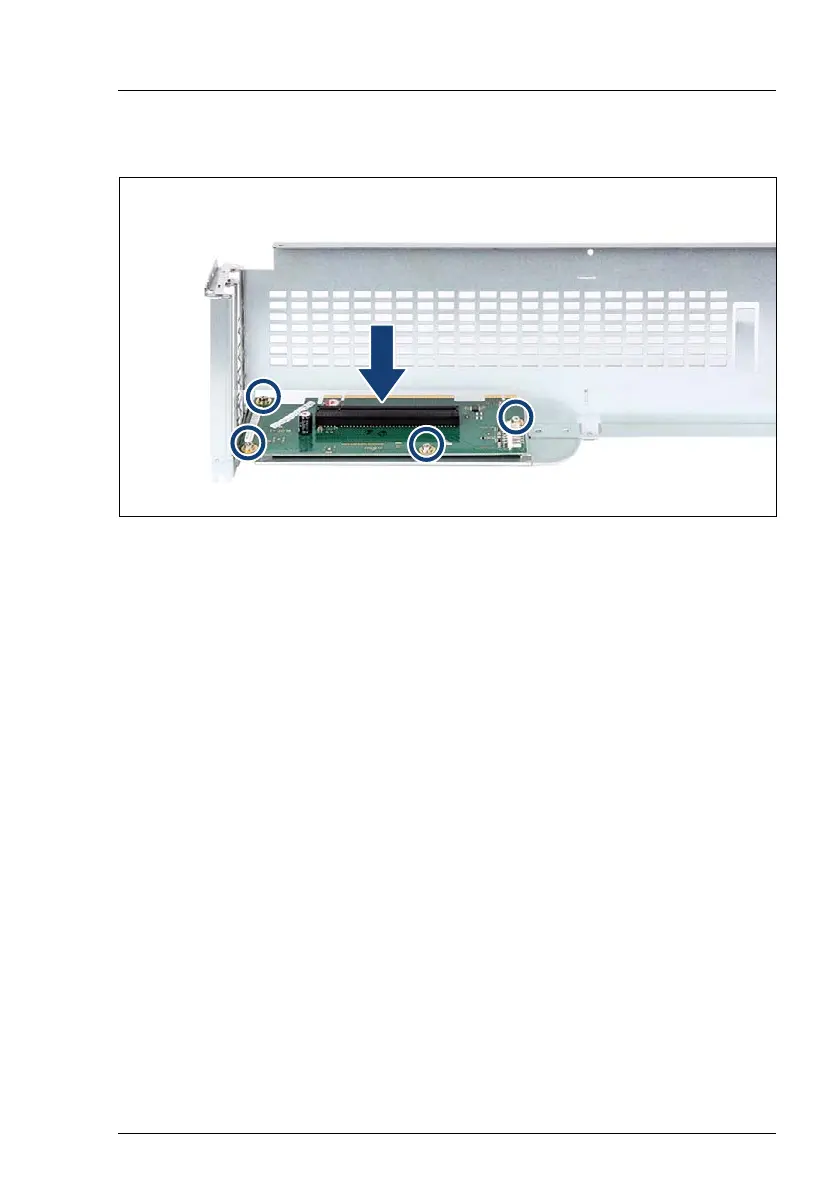

Figure 179: Installing a riser card
Ê Insert the riser card with one PCIe slot Gen3 x16 in the holder.
Ê Fasten the riser card with four screws (see circles).
