196 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)

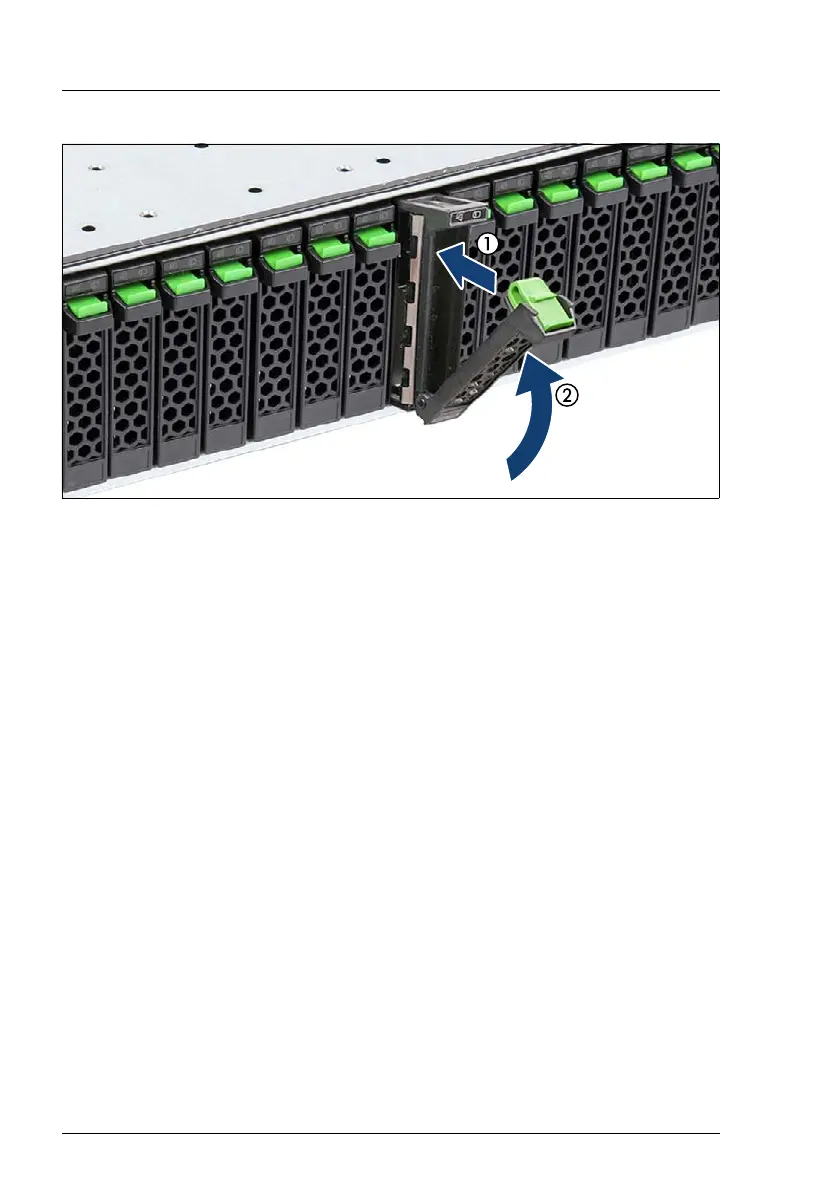

Figure 96: Inserting the 2.5-inch HDD module
Ê Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
Ê Close the locking lever in the direction of the arrow until it engages (2).
7.4.2.4 Concluding steps
Ê Refer to the RAID documentation configuring the RAID, see "Documents
you need at hand" on page 46.
