326 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.7.4.4 Removing the FBU from the holder

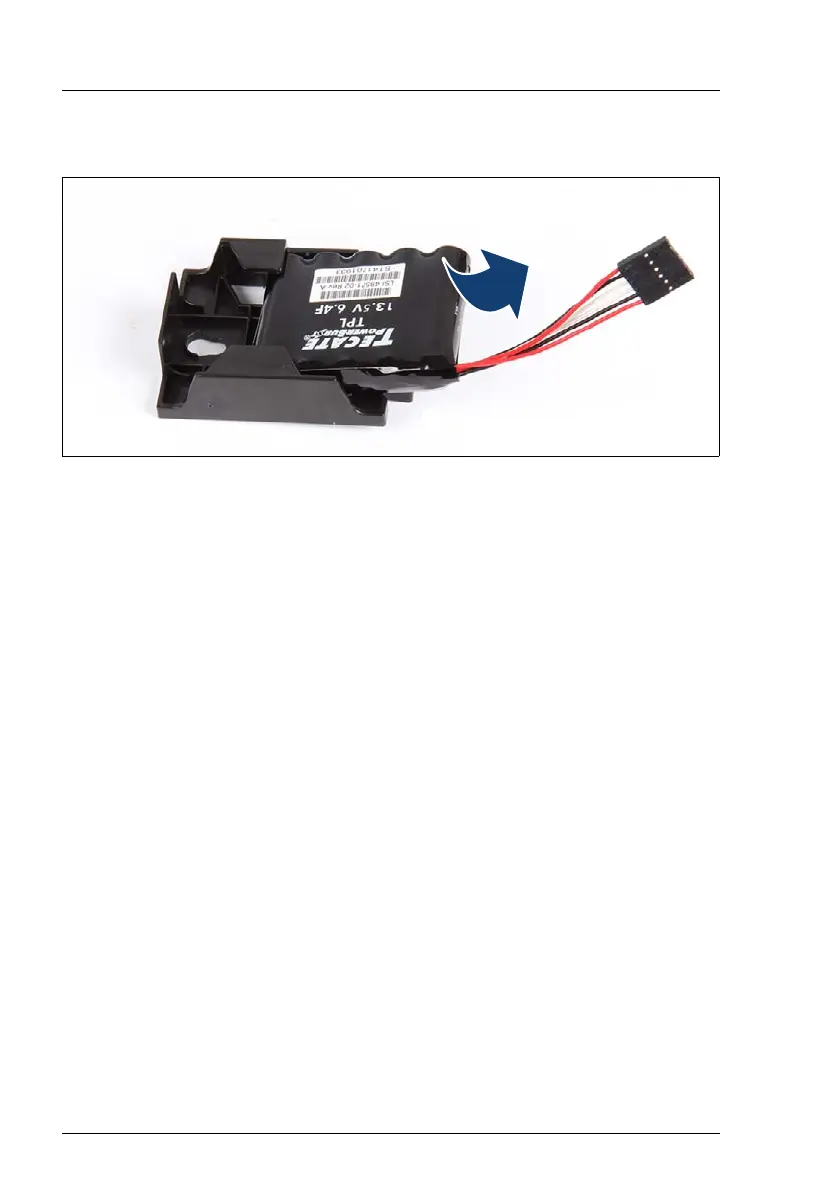

Figure 221: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
8.7.4.5 Installing a new FBU
Ê "Preparing the FBU" on page 318
Ê "Connecting the FBU to the RAID controller" on page 318
Ê "Installing the FBU holder onto the air duct" on page 319
8.7.4.6 Concluding steps
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê If applicable, "Updating RAID controller firmware" on page 106.
Ê "Enabling SVOM boot watchdog functionality" on page 114
