Hard disk drives (HDD) and solid state drives (SSD)
7.6.1.2 Disconnecting cables from the rear backplane

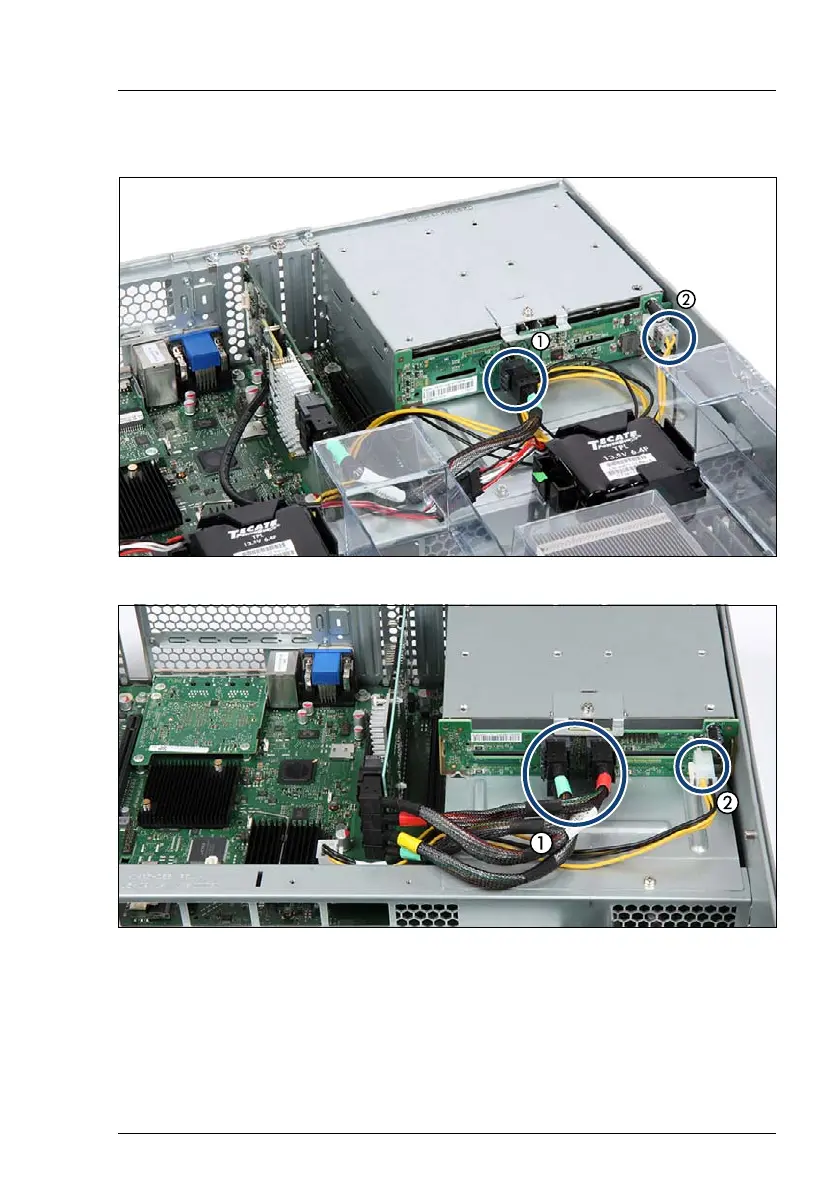

Figure 124: Disconnecting cables from the 4x 2.5-inch SAS HDD/SSD backplane rear
Figure 125: Disconnecting cables from the PCIe SSD backplane rear
Ê Disconnect all cables from the backplane:
– SAS cable(s), or PCIe cables (1)
– Power cable (2)
