Basic hardware procedures
4.8.1 Riser modules for expansion cards (HL)
4.8.1.1 Removing the riser module 1 (HL)

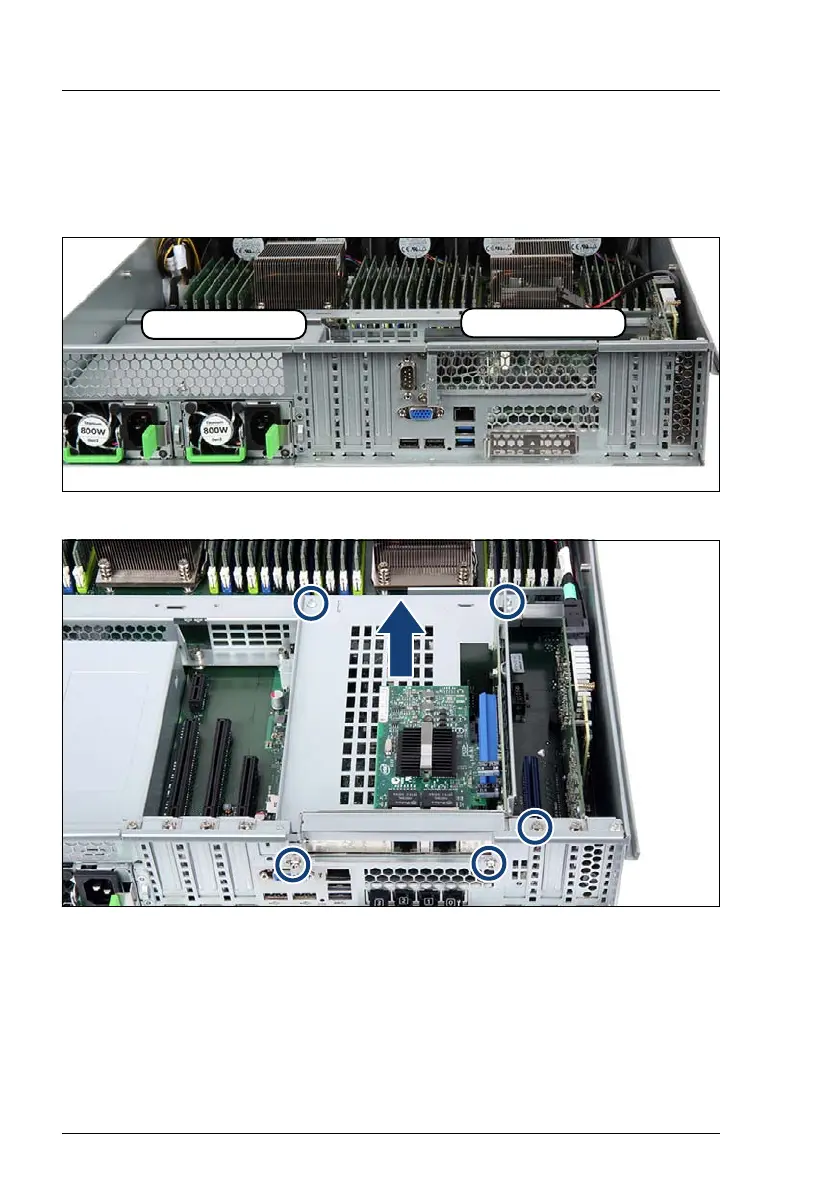

Figure 15: Numbering riser modules
Figure 16: Removing the riser module 1
Ê If applicable, "Removing an SFP+ transceiver module" on page 252.
Ê Remove five screws (see circles).
Ê Carefully take out the riser module.
Riser module 1
Riser module 2
