Accessible drives

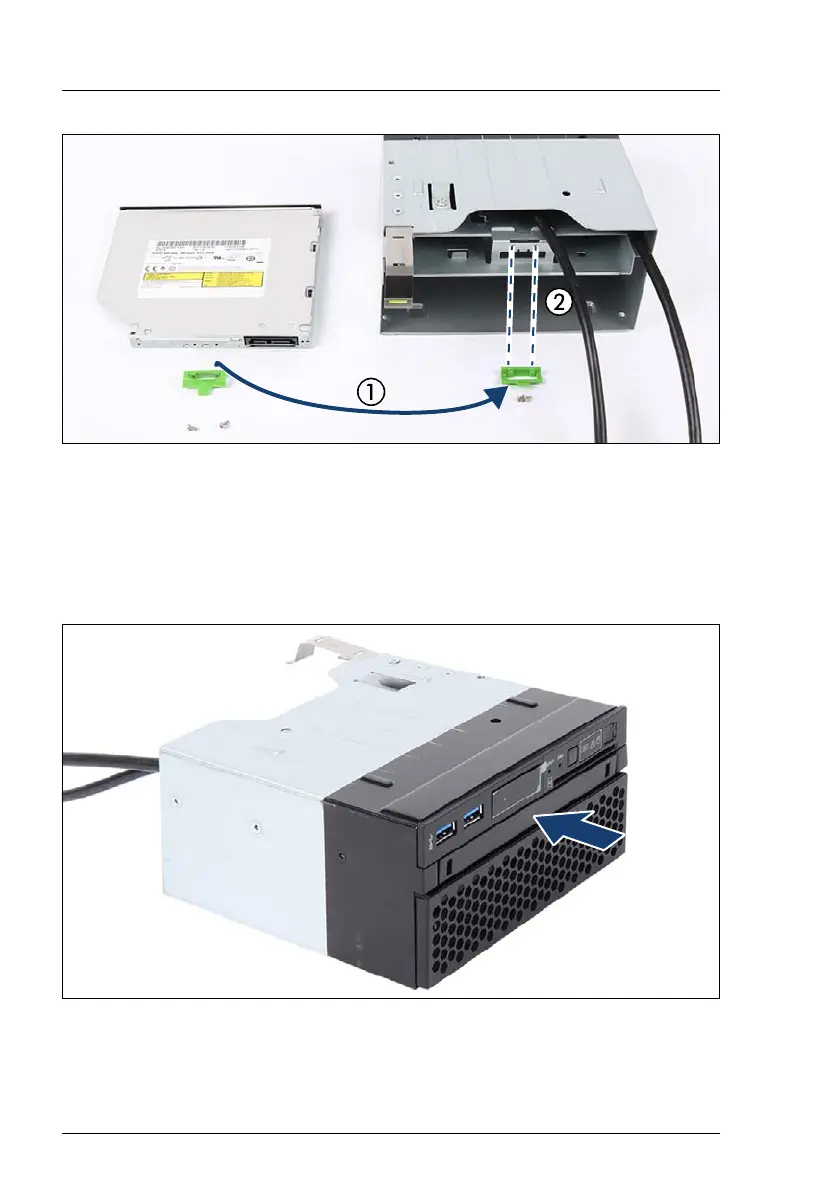

Figure 309: Installing ODD latch to the front cage
Ê Turn the ODD latch 180
o
as shown (1).
Ê Fasten the ODD latch with two screws as shown (2).
12.3.2.3 Installing the ODD dummy cover
Figure 310: Installing the ODD dummy cover
Ê Install the ODD dummy cover.
