RX2540 M2 Upgrade and Maintenance Manual 519
System board and components

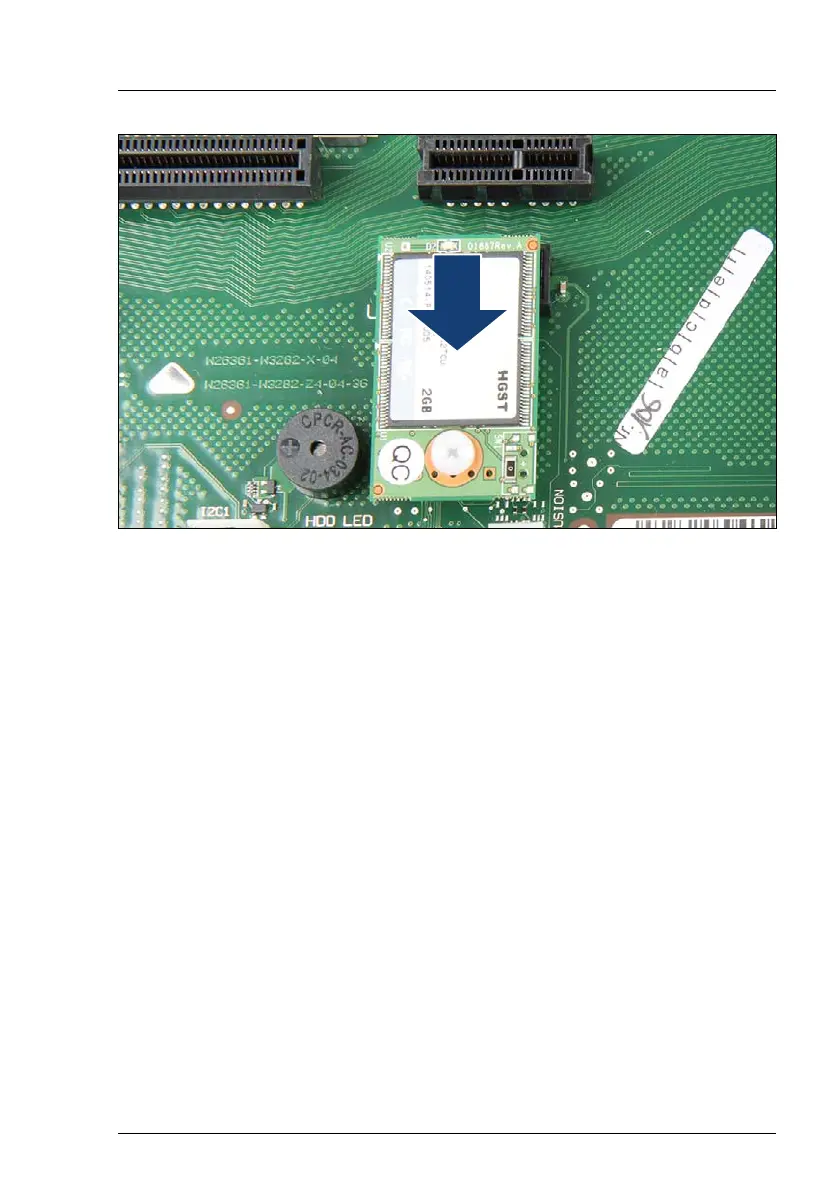

Figure 391: Installing the UFM
Ê Connect the UFM to the system board. The UFM spacer must click into the
hole on the system board.
14.3.1.3 Concluding steps
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Enabling SVOM boot watchdog functionality" on page 114
Ê "Resuming BitLocker functionality" on page 120
14.3.1.4 Software configuration
In order to setup the ESXi configuration, the VMware ESXi Recovery Tools CD
is required. An ISO image of the CD is available from the Fujitsu service
partners portal at the following https address:
https://globalpartners.ts.fujitsu.com/com/service/ps/Servers/PRIMERGY/
Pages/default.aspx
Ê Sign in and choose your PRIMERGY server.
