288 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
For all GPGPUs

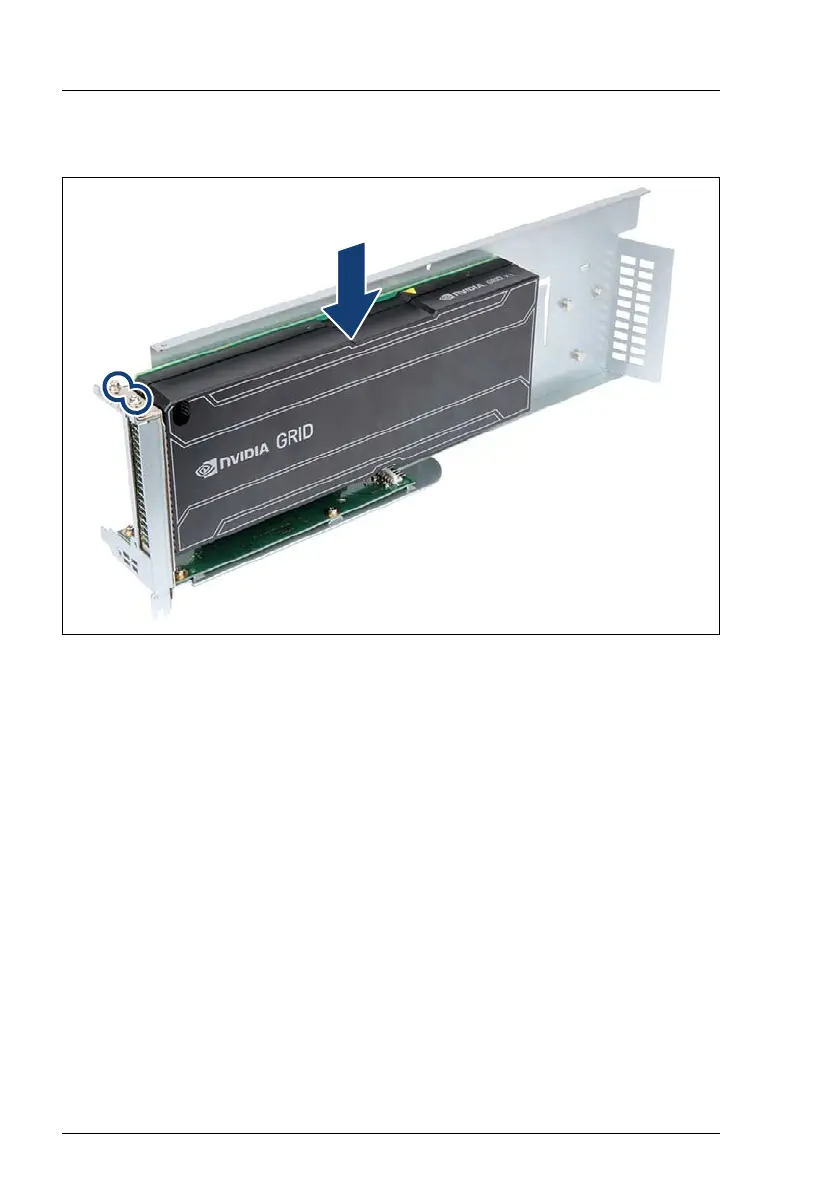

Figure 183: Installing a GPGPU card in a riser module
Ê Fasten the GPGPU card with two screws (see circles).
8.6.1.5 Replacing the heat sink (FL)
Ê Replace the standard CPU heat sink with the CPU heat sink for GPGPU
card as described in section "Replacing CPU heat sinks" on page 388.
8.6.1.6 Removing the slot cover riser module 1
Ê Remove the slot cover as described in section "Removing the slot cover riser
module 1" on page 267.
8.6.1.7 Removing the rear air grid riser module 1
Ê Remove the rear air grid as described in section "Removing the rear air grid
riser module 1" on page 268.
