Accessible drives
12.5.1.2 Preparing an RDX drive

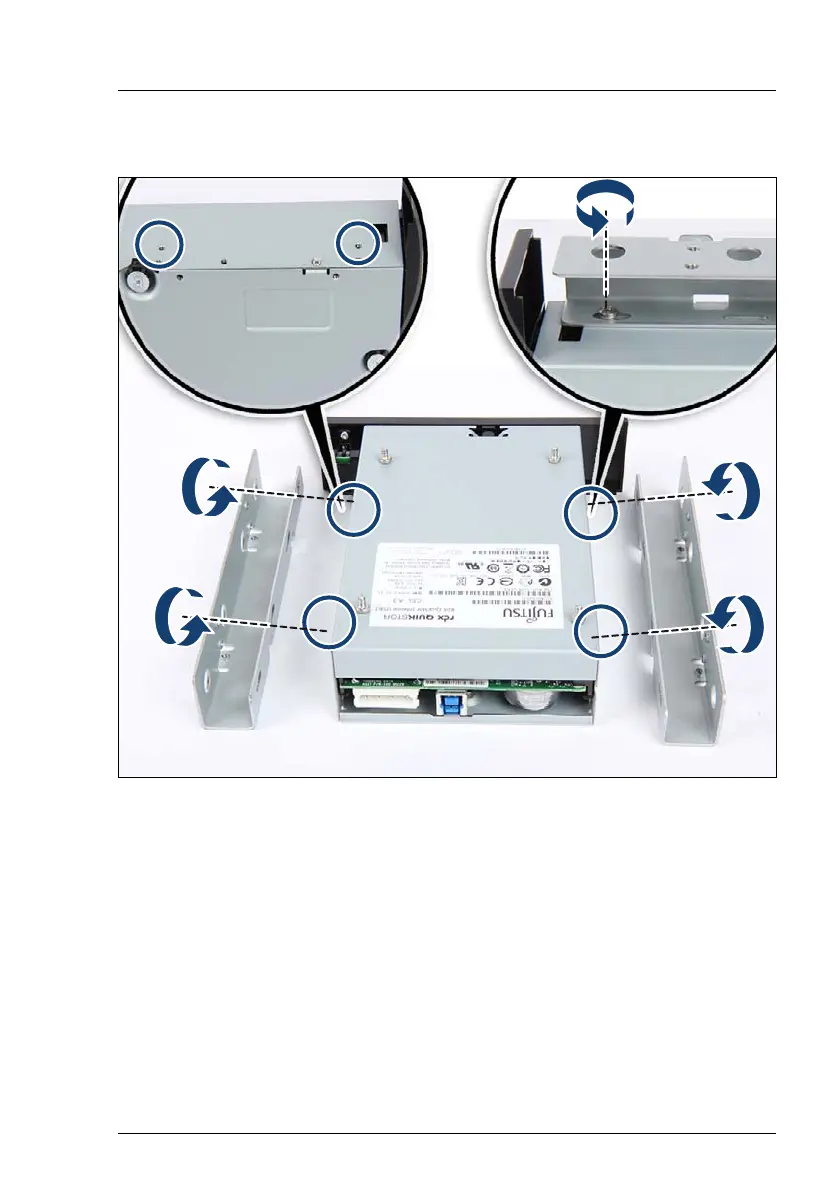

Figure 325: Installing the rails to the RDX drive (A)
Ê Fasten the rails with each two screws (fillister head screw,M3x 5mm; PZ2,
0.6 Nm; 4 screws are parts of RDX adapter set) The screws must be fasten
in the middle of the slotted holes.
