RX2540 M2 Upgrade and Maintenance Manual 161
Hard disk drives (HDD) and solid state drives (SSD)
7.3.1.2 Removing the 4x 3.5-inch SAS HDD backplane 1

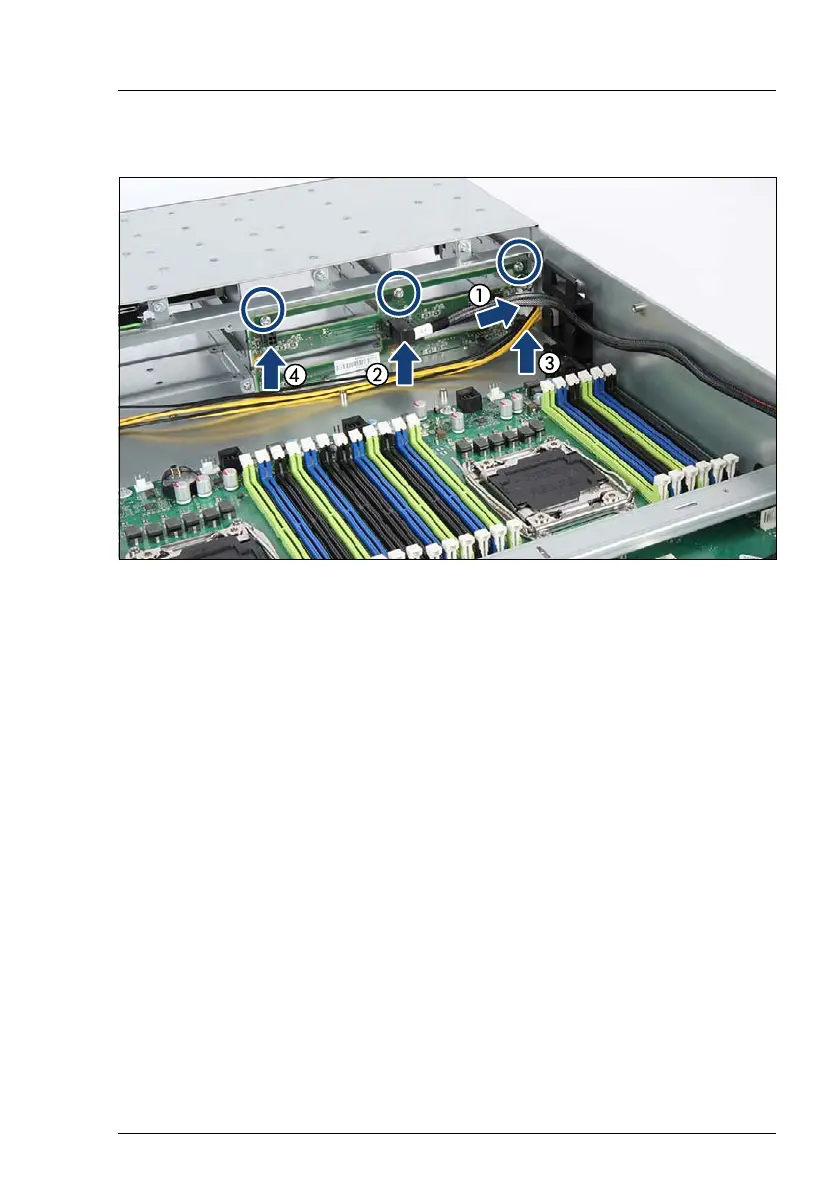

Figure 55: Disconnecting cables from the 4x 3.5-inch HDD SAS backplane
Ê Disconnect all cables from the 4x 3.5-inch HDD SAS backplane 1:
– SAS/SATA cable (1)
– Power cable (2)
– If applicable OOB cable (3)
– If applicable ODD power cable (4)
Ê Remove the three screws.
