Accessible drives
12.4.2.2 Removing the LTO drive
LTO 4/5/6/7

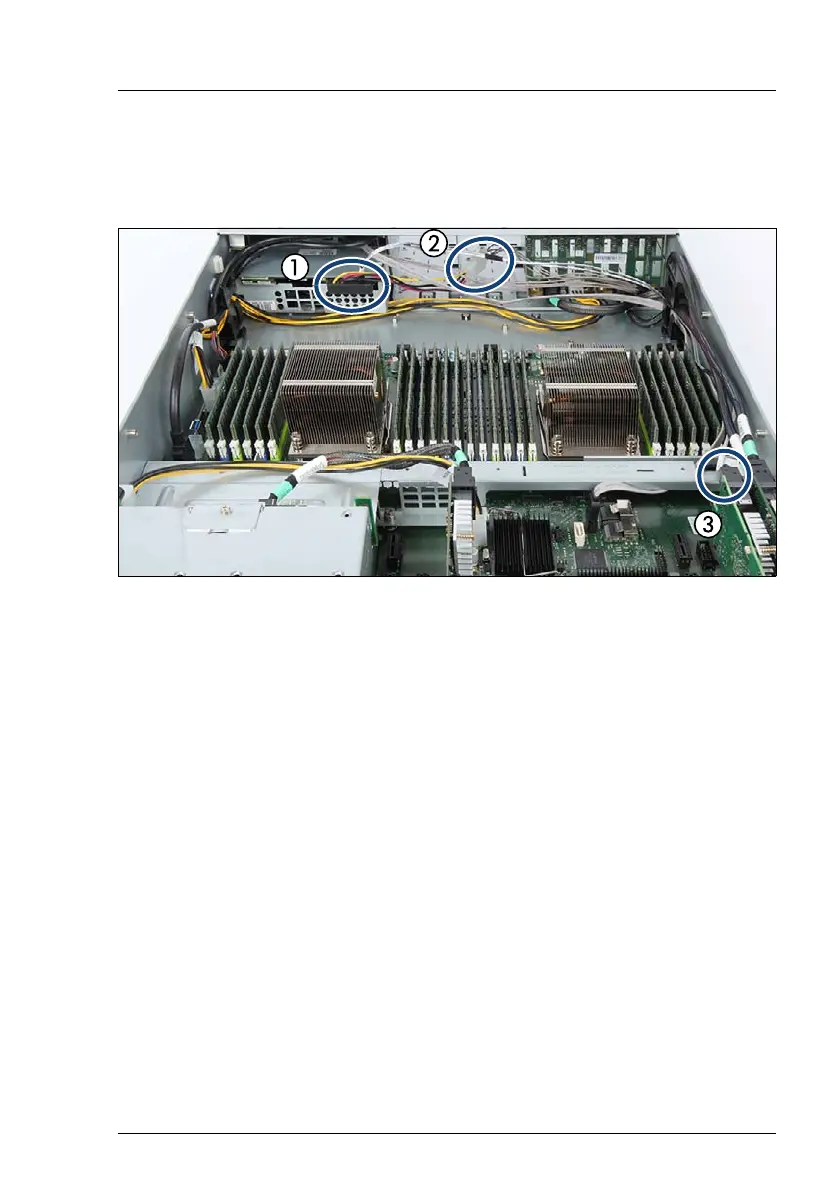

Figure 318: Disconnecting the cables
Ê Disconnect the connector (1) and (2).
Ê Disconnect the connector from the MLC1 connector of the PSAS
controller (3).
