192 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
7.4.1.5 HDD mounting order for 4x 2.5-inch SAS HDD/SSDs or PCIe
SSDs accessible from the rear side
I Two configurations are available:
– 4x 2.5-inch SAS HDD/SSDs connected to a SAS3.0 controller
– 4x PCIe SSD SFFs connected to a PCIe switch

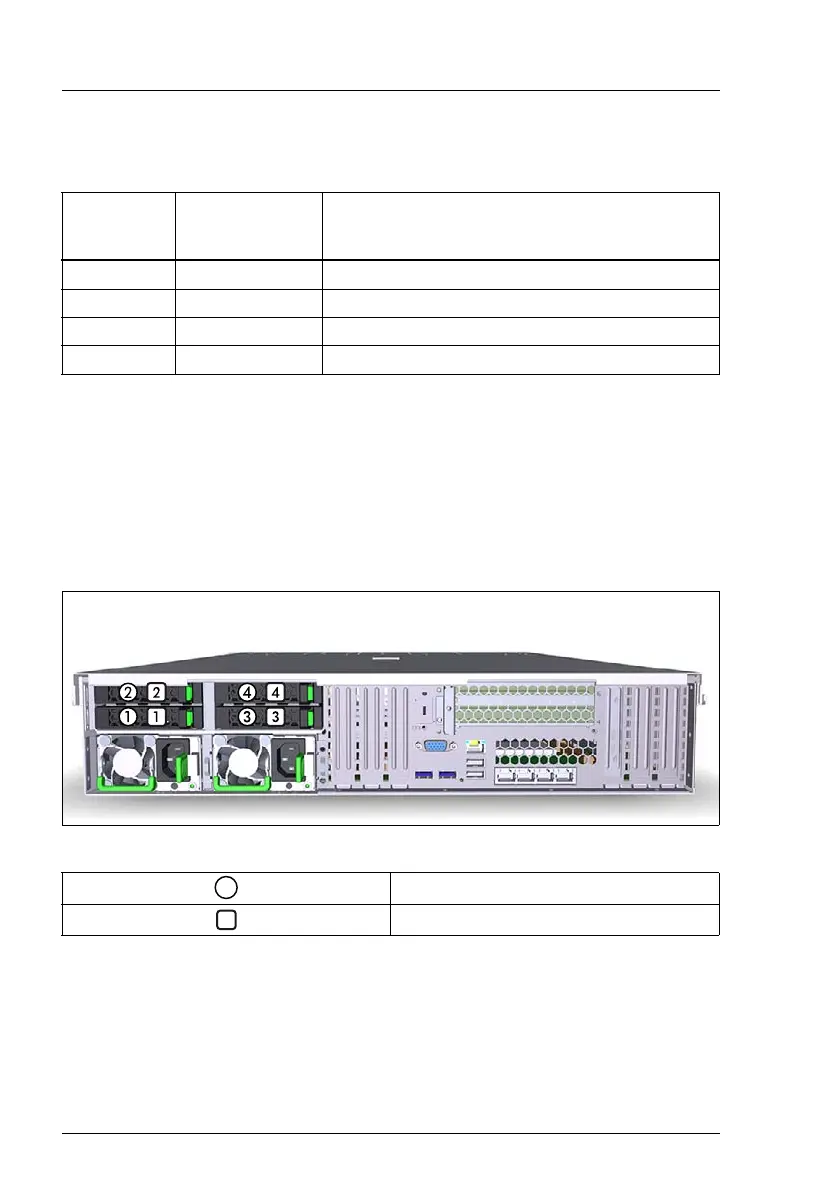

Figure 93: 4x 2.5-inch SAS HDD/SSDs or PCIe SSDs rear
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
Position Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller
[1] 0 Vendor Product (1:0)
[2] 1 Vendor Product (1:1)
[3] 2 Vendor Product (1:2)
[4] 3 Vendor Product (1:3)
Mounting order
Position
