RX2540 M2 Upgrade and Maintenance Manual 499
Front panel and external front connectors
Ê "Disconnecting the power cord" on page 66
Ê "Getting access to the component" on page 68
Ê "Removing the fan box" on page 397
13.8.1.2 Removing the front panel module
Ê "Removing the front panel cage" on page 479
13.8.1.3 Preparing the front USB3.0 connector

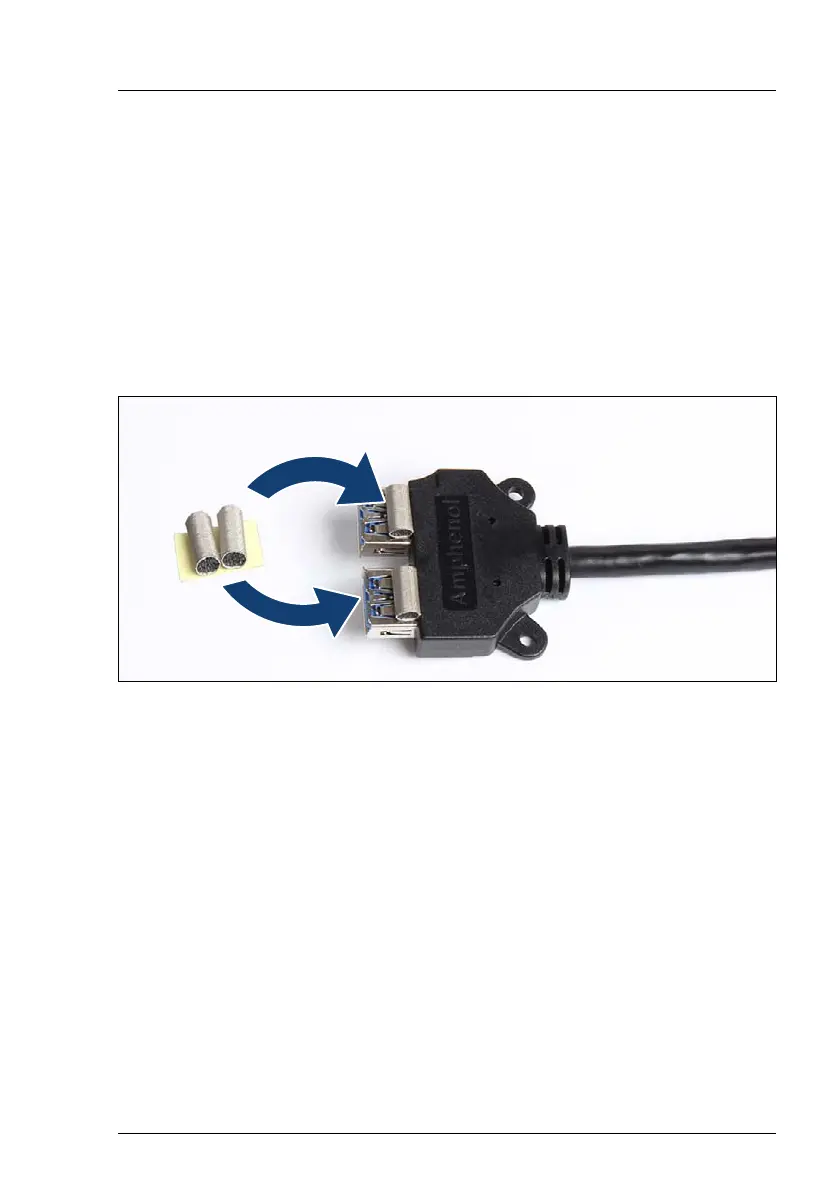

Figure 373: Sticking the gaskets
Ê Stick the self-adhesive gaskets on the front USB3.0 connector.
