490 Upgrade and Maintenance Manual RX2540 M2
Front panel and external front connectors
13.6.1.2 Removing the front panel module
Ê "Removing the front panel cage" on page 479
13.6.1.3 Removing the front panel board

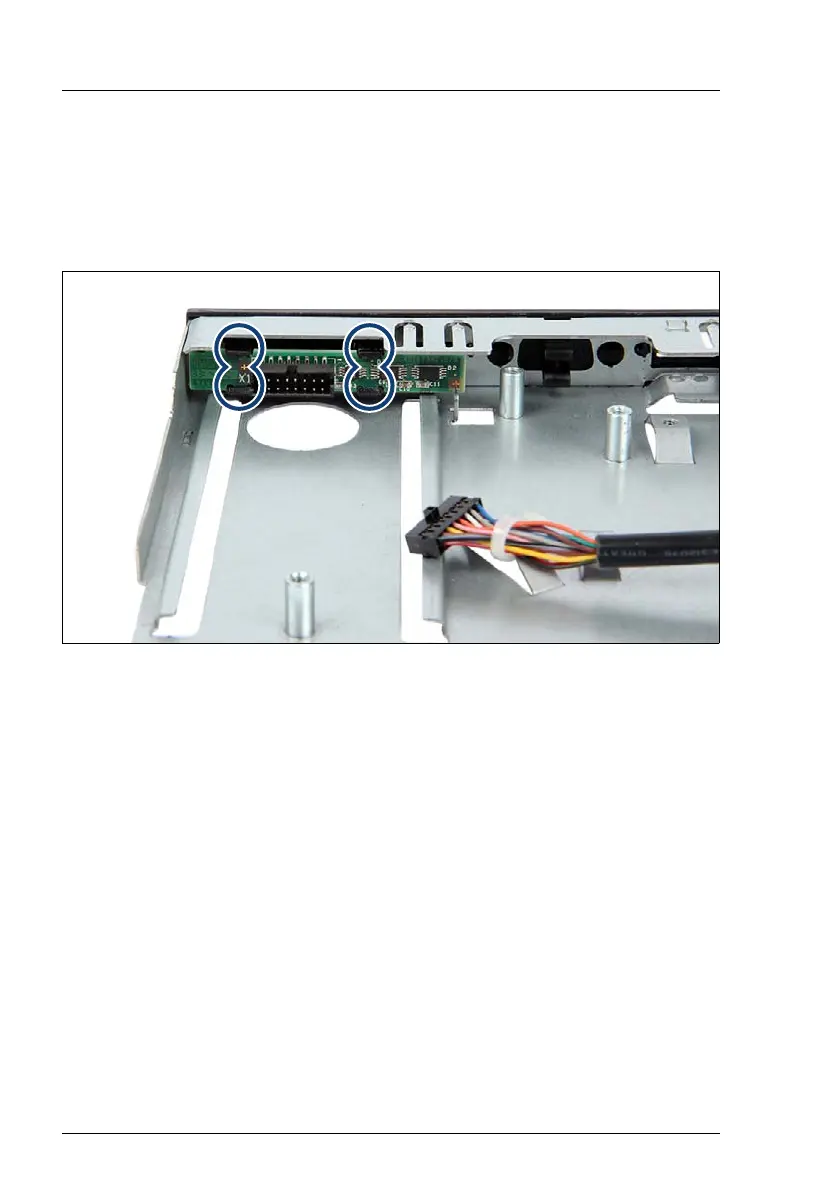

Figure 366: Removing the front panel board
Ê Disengage the four hooks.
Ê Remove the front panel board.
