Basic hardware procedures
4.5.2 Installing the top cover

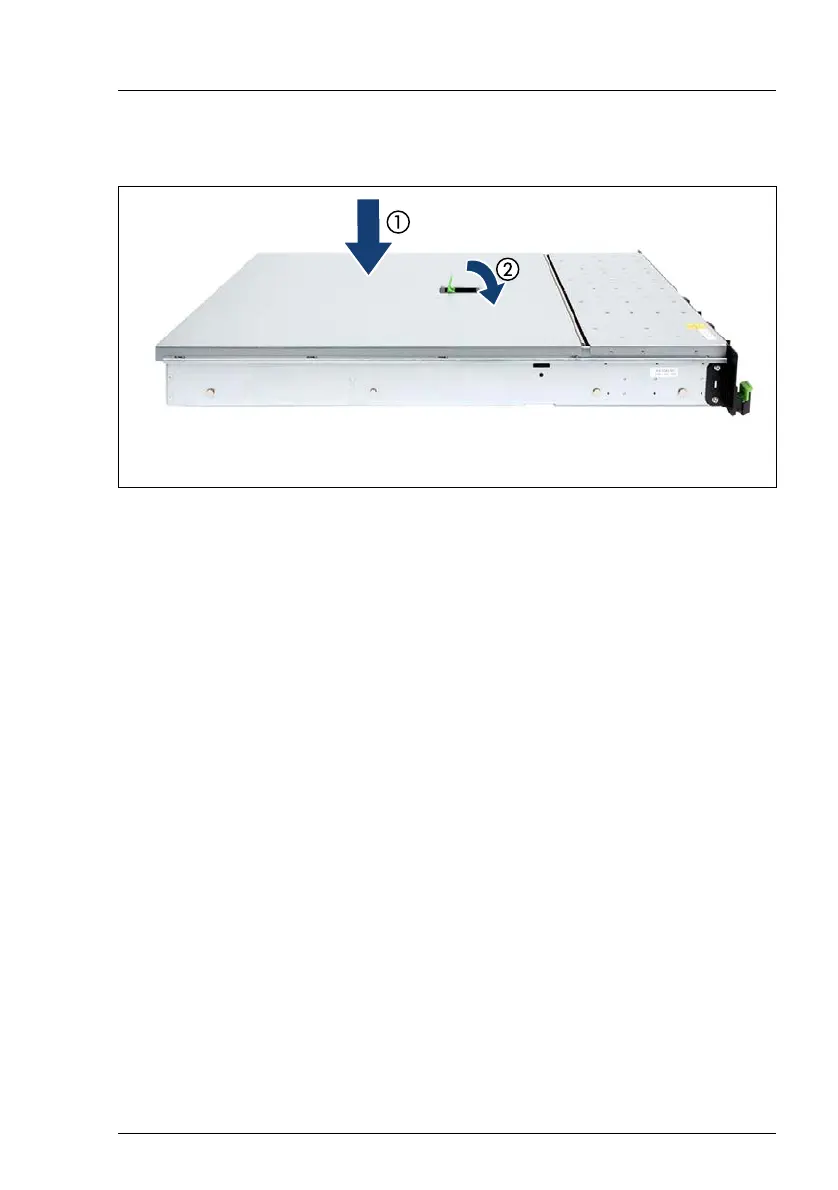

Figure 9: Mounting the top cover
Ê Open the locking lever on the top cover.
Ê Fit the top cover on the chassis, aligning it according to the edge guide
marking on the upper server surface.
Ê Lower the top cover onto the chassis (1).
Ê Close the locking lever on the top cover. This will slide the top cover shut
engaging the locking mechanism (2).
