Fujitsu PRIMERGY RX2540 M2

580 Upgrade and Maintenance Manual RX2540 M2
Appendix
16.1.3 Server interior

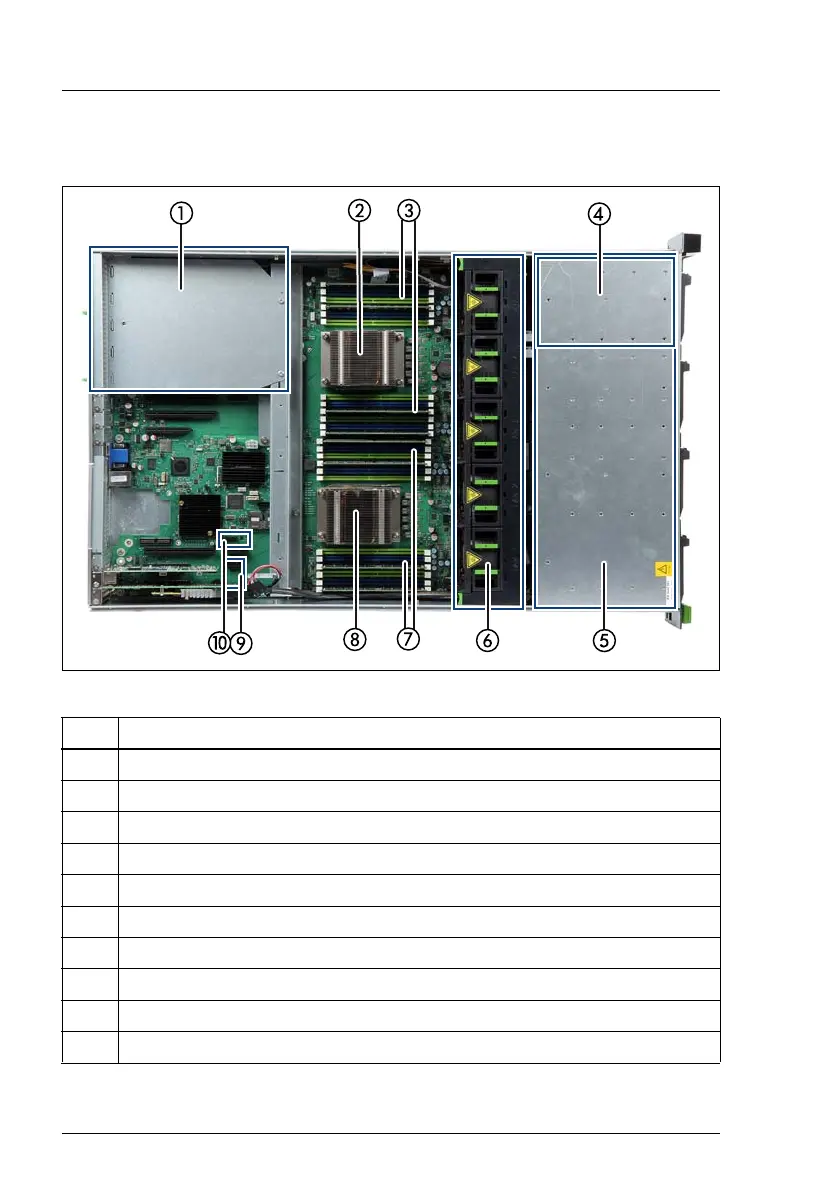

Figure 440: PRIMERGY RX2540 M2 interior (example: 2.5-inch HDD model)
Pos. Component
1PSUs
2 CPU 2 with CPU heat sink
3 Memory slots CPU 2
4 Front panel module bay
5 HDD/SSD drive bay
6 Fans
7 Memory slots CPU 1
8 CPU 1 with CPU heat sink
9UFM
10 TPM
