RX2540 M2 Upgrade and Maintenance Manual 215
Hard disk drives (HDD) and solid state drives (SSD)
7.5.4.2 Removing cables from PCIe backplane

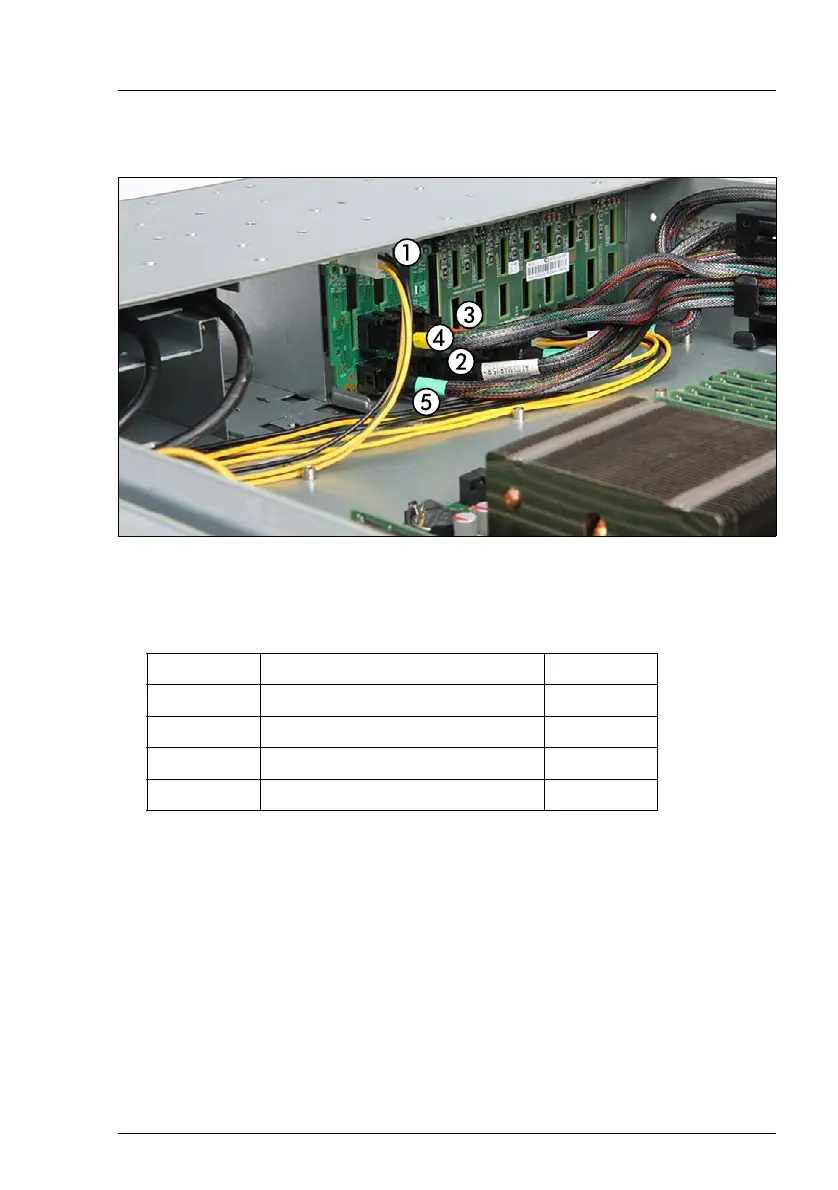

Figure 115: Disconnecting cables from the PCIe backplane
Ê Disconnect power cable C37 (1) from the PCIe backplane.
Ê Disconnect the cable bundle C36 from the PCIe backplane:
Plug Connector on PCIe backplane Color
P0 X1 black
P1 X2 red
P2 X3 yellow
P3 X4 green
