Hard disk drives (HDD) and solid state drives (SSD)

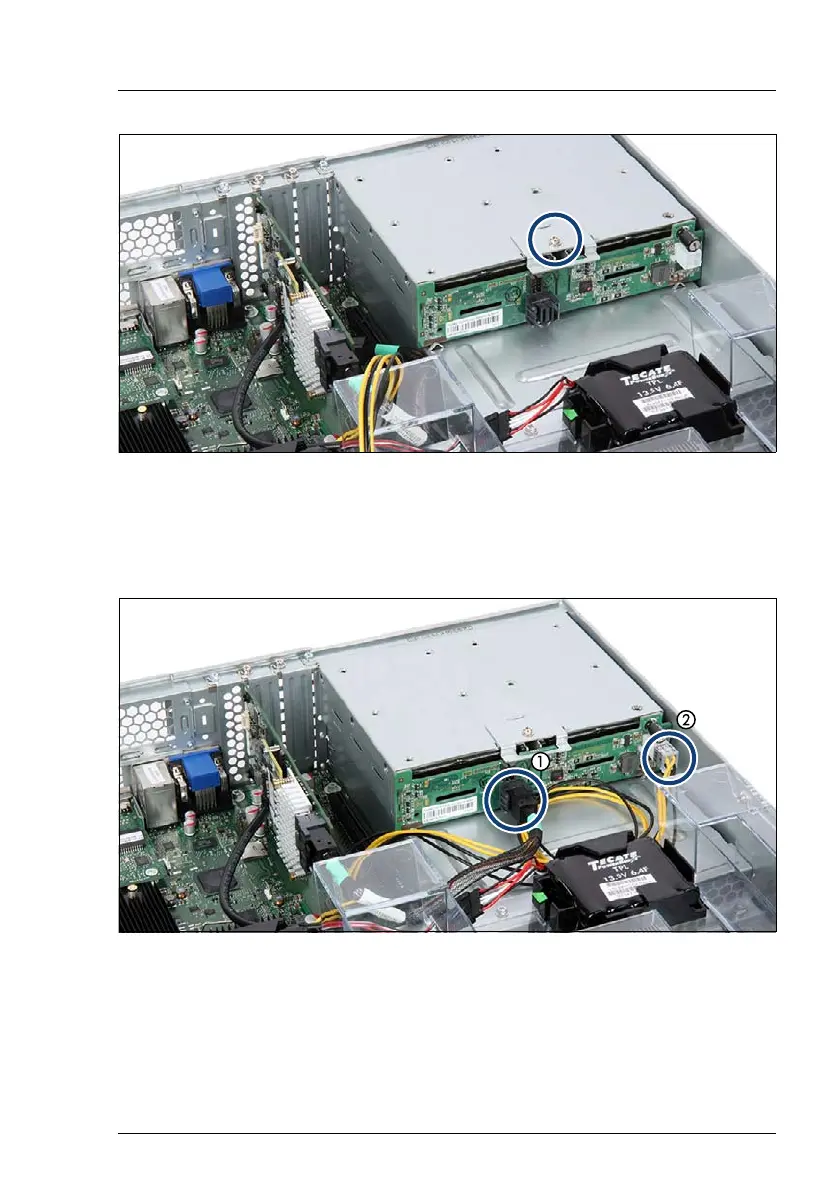

Figure 128: Installing the 4x 2.5-inch SAS HDD/SSD backplane rear (B)
Ê Position the clip and fasten it with one screw (see circle).
7.6.1.5 Connecting cables to the rear backplane
Figure 129: Connecting cables to the 4x 2.5-inch SAS HDD/SSD backplane rear
