254 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units

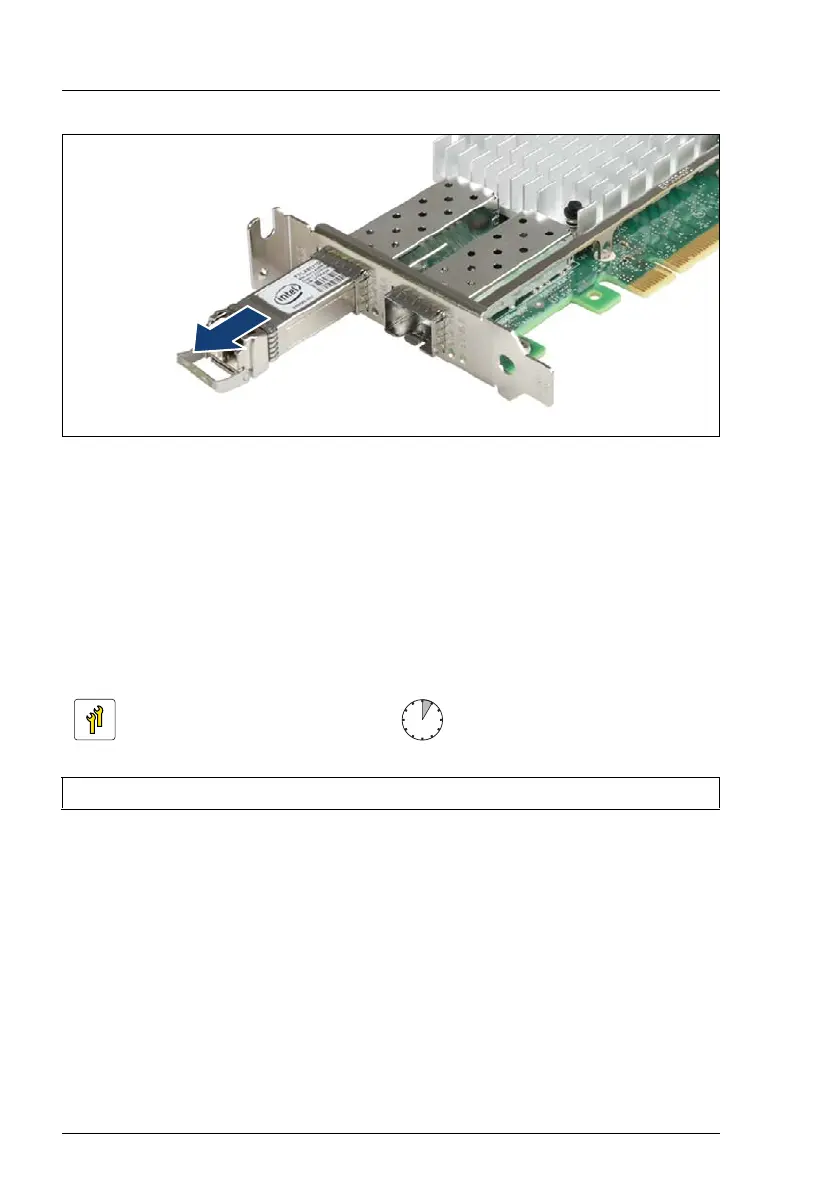

Figure 159: Removing the SFP+ transceiver module
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Attach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
8.3.3 Replacing SFP+ transceiver modules
For Fiber Channel over Ethernet (FCoE) configurations, the ethernet server
adapter is equipped with one or two SFP+ (small form-factor pluggable)
transceiver modules.
Removing SFP+ transceiver modules
Ê Remove the defective SFP+ transceiver module(s) as described in section
"Removing an SFP+ transceiver module" on page 252.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: tool-less
