272 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.5.3.4 Installing the air grid extension to riser module 2

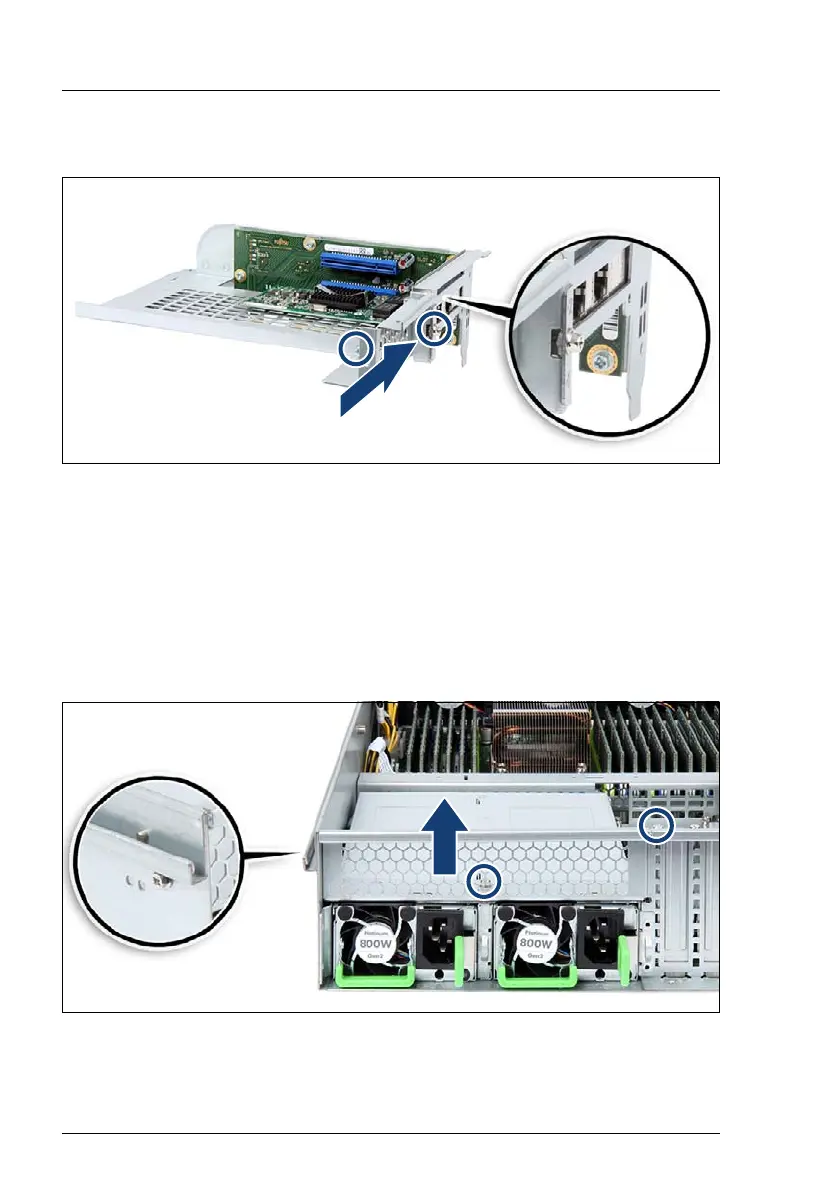

Figure 170: Installing the air grid extension to riser module 2
Ê Position the air grid extension.
I Make sure that the bracket of the riser card holder is positioned
outside the air grid extension (see closeup).
Ê Fasten the air grid extension with two screws (see circles).
8.5.3.5 Removing the rear air grid riser module 2
Figure 171: Removing the rear air grid
Ê Remove three screw (see circles).
