RX2540 M2 Upgrade and Maintenance Manual 169
Hard disk drives (HDD) and solid state drives (SSD)

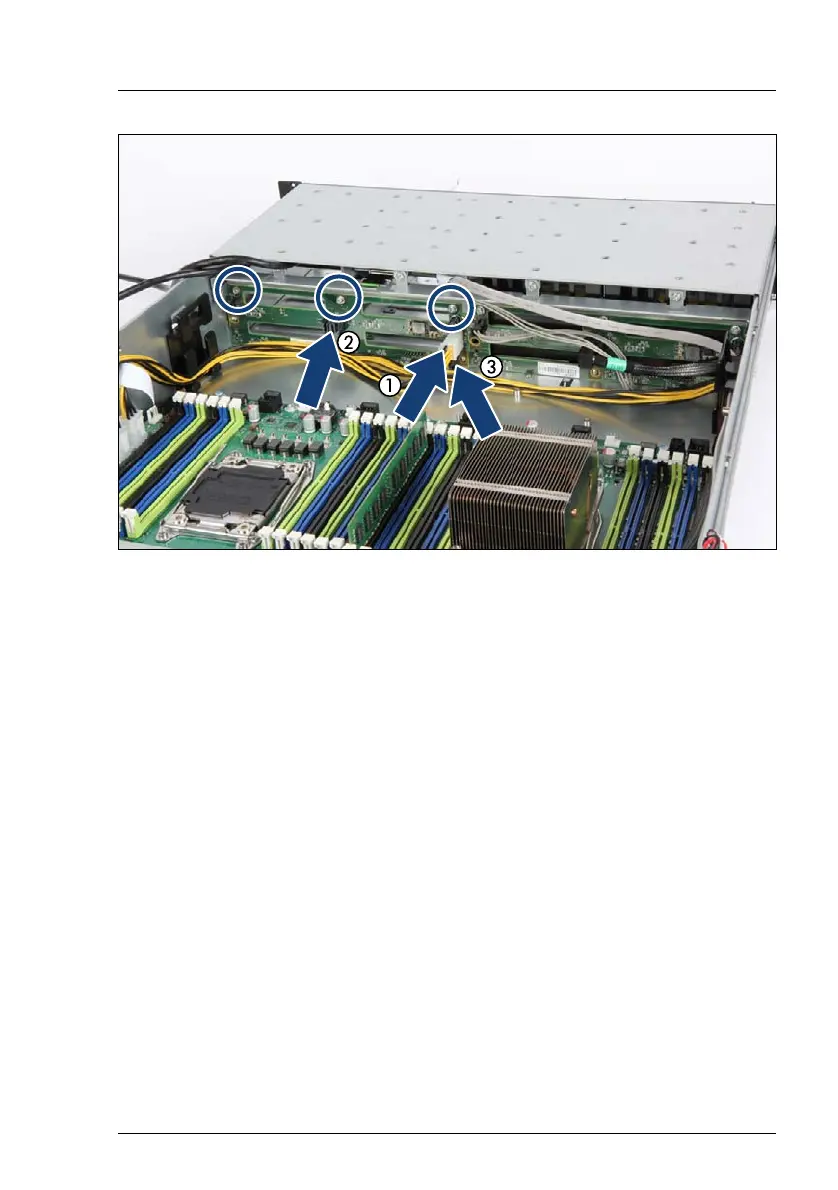

Figure 66: Installing the 3.5-inch HDD SAS backplane 2
Ê Fasten the 4x 3.5-inch HDD SAS backplane 3 with the screw.
Ê Connect all cables to the 3.5-inch HDD SAS backplane 2:
– Power cable (1)
– SAS cable (2)
– If applicable, OOB cable (3)
I For a complete cabling overview, please refer to section "List of used
cables" on page 559.
7.3.1.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Installing 3.5-inch HDD modules" on page 147
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Resuming BitLocker functionality" on page 120
