Hard disk drives (HDD) and solid state drives (SSD)
7.2.3.2 Removing a 3.5-inch HDD module

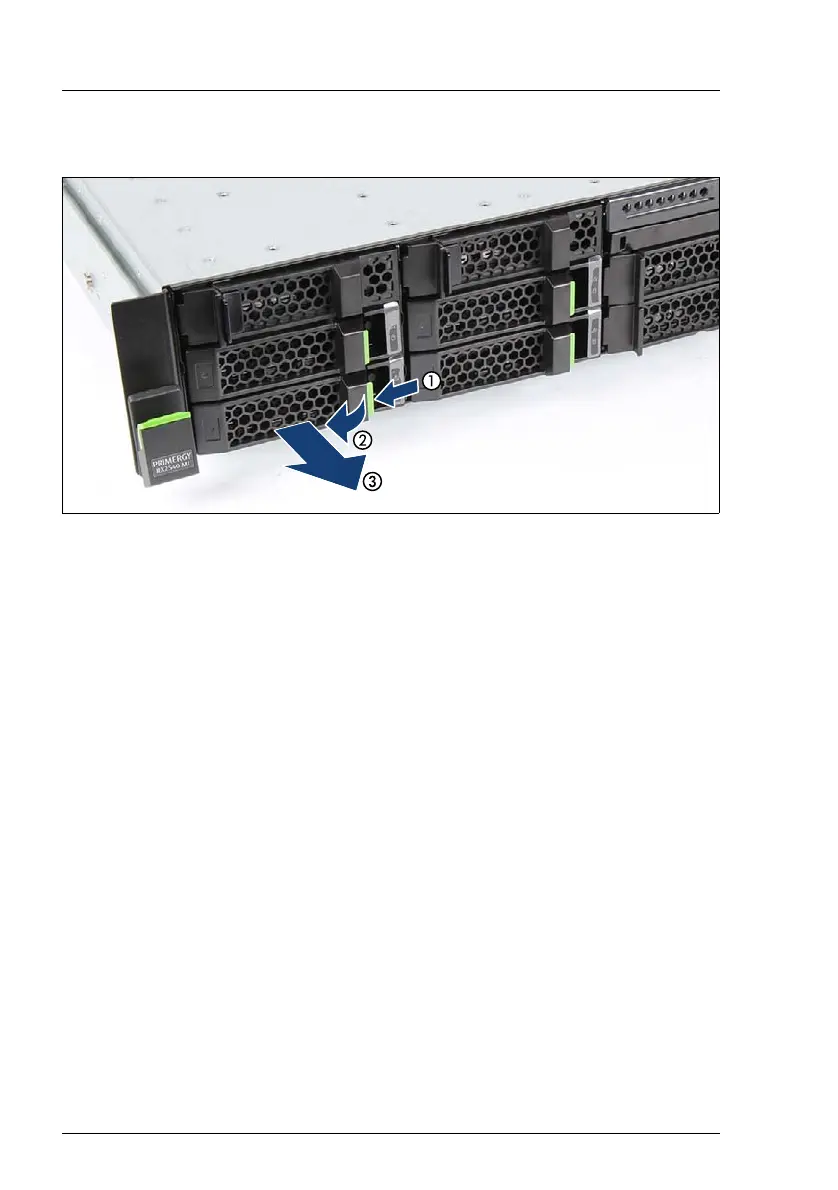

Figure 48: Removing a 3.5-inch HDD module
Ê Pinch the green locking clip (1) and open the locking lever (2).
I Thereby, the HDD module is pushed out of its drive bay by about 1 cm
and disconnected from the SAS/SATA backplane.
Ê Wait about 30 seconds to allow the HDD to spin down.
Ê Pull the HDD module completely out of its bay (3).
