RX2540 M2 Upgrade and Maintenance Manual 357
9.2.2 Installing a memory module
Ê Identify the correct memory slot see section "Memory sequence" on
page 349.

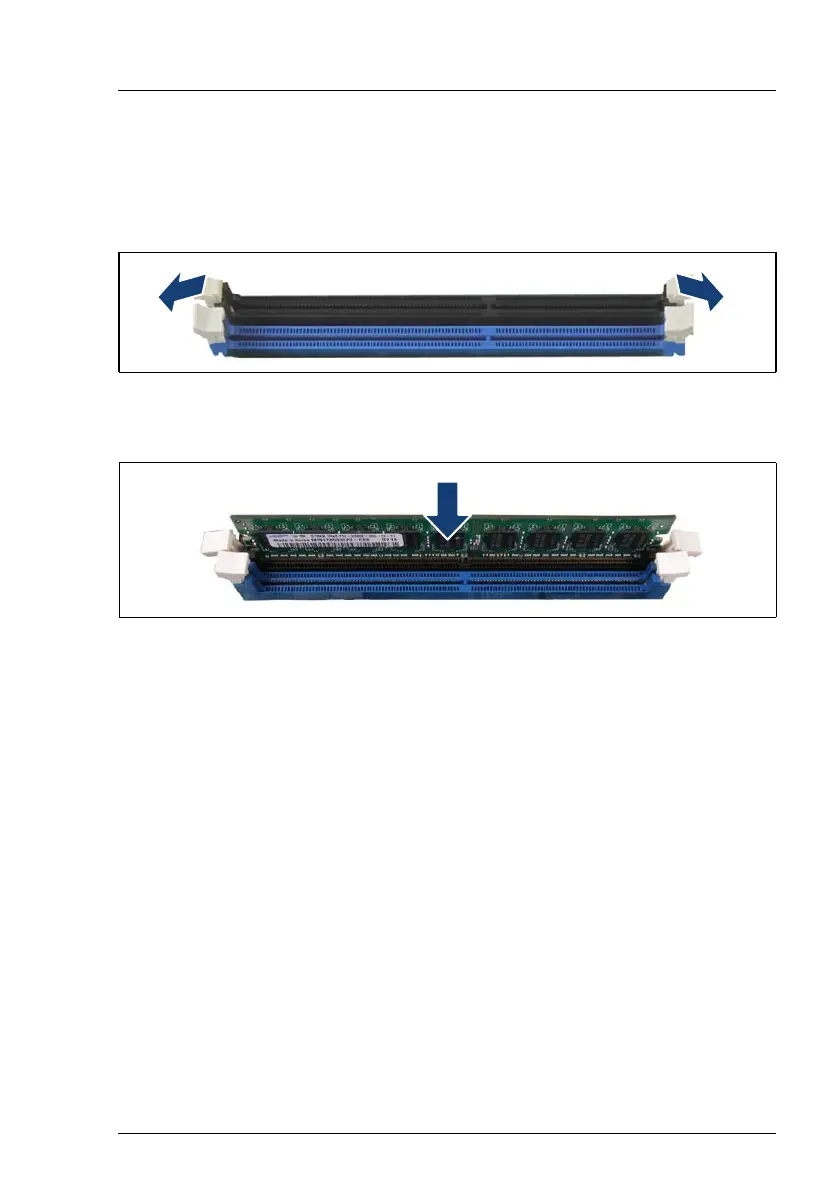

Figure 245: Installing memory modules (A)
Ê Press out the securing clip at each end of the memory slot.
Figure 246: Installing memory modules (B)
Ê Align the notch on the bottom of the module with the crossbar in the slot.
Ê Press down on the memory module until the securing clips snap into the
cut-outs at each end of the module.
9.2.3 Concluding steps
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Updating or recovering the system board BIOS and iRMC" on page 103
Ê "Enabling SVOM boot watchdog functionality" on page 114
Ê "Verifying the memory mode" on page 115
Ê "Resuming BitLocker functionality" on page 120
