RX2540 M2 Upgrade and Maintenance Manual 257
Expansion cards and backup units

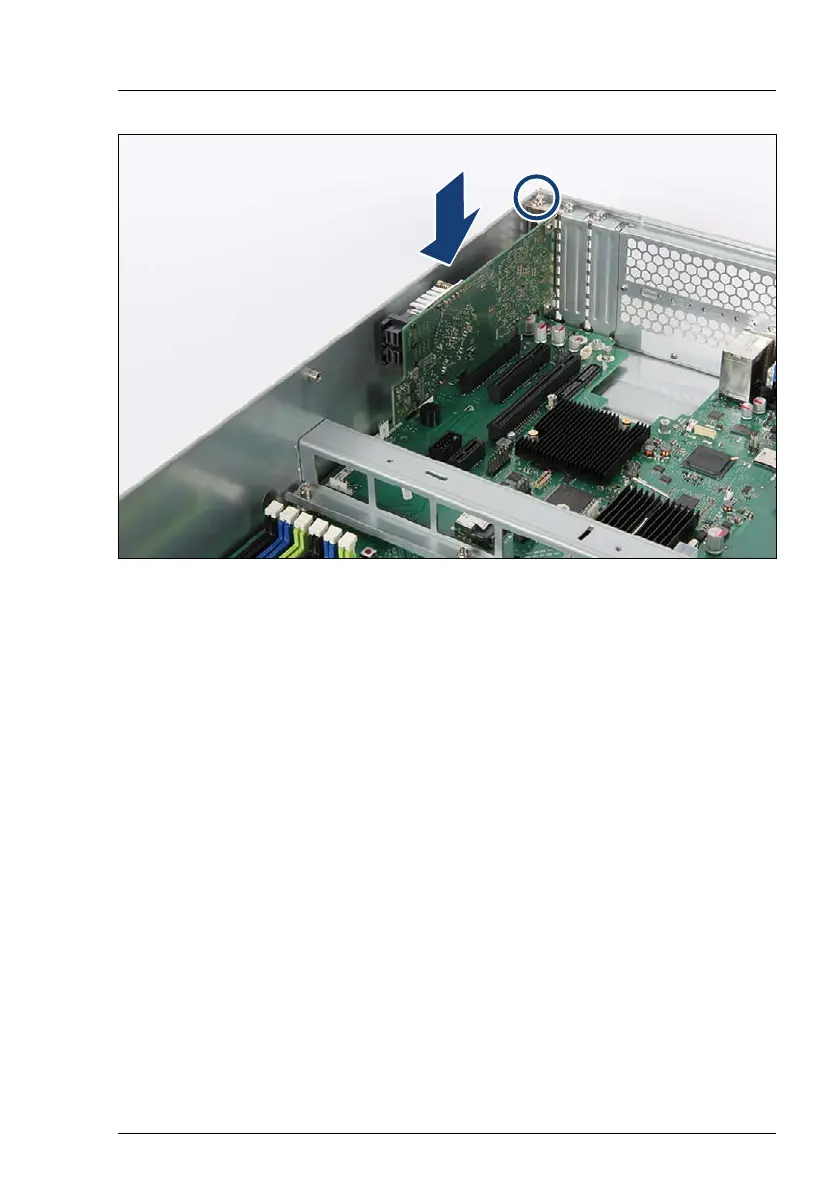

Figure 161: Installing the expansion card
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
Ê Fasten the expansion card with the screw (see circle).
Ê If applicable, install SFP+ transceiver modules into the new expansion card,
as described in section "Installing SFP+ transceiver modules" on page 249.
Ê If applicable, connect internal cables to the expansion card.
I For a complete cabling overview, please refer to section "List of used
cables" on page 559.
Ê If applicable, connect an FBU cable to the expansion card as described in
section "Connecting the FBU to the RAID controller" on page 318.
8.4.1.4 Concluding steps
Ê "Reassembling" on page 73
Ê If applicable, connect all external cables to the expansion card(s).
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
