538 Upgrade and Maintenance Manual RX2540 M2
System board and components

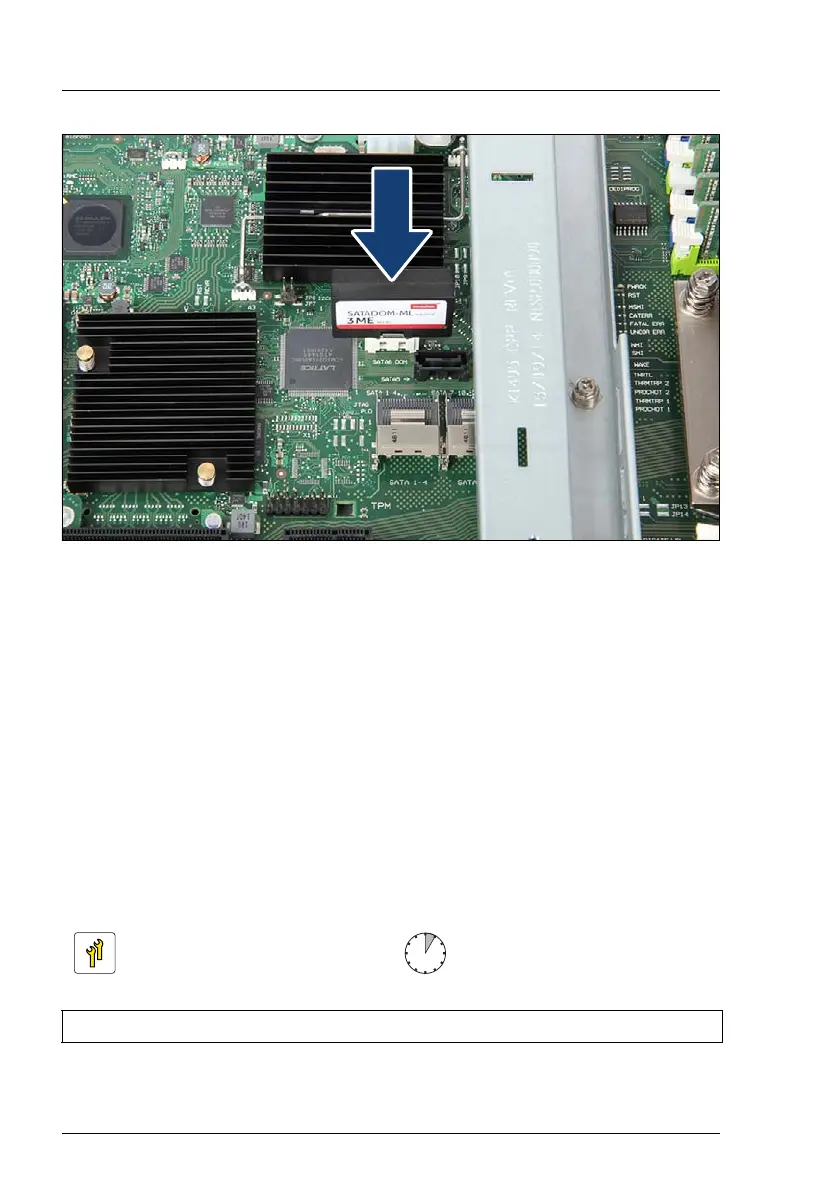

Figure 407: Installing the SATA DOM
Ê Connect the SATA DOM in the connector "SATA6 DOM" on the system
board.
14.5.1.3 Concluding steps
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Verifying system information backup / restore" on page 105
14.5.2 Removing the SATA DOM
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
