516 Upgrade and Maintenance Manual RX2540 M2
System board and components
I Do not throw the CMOS battery into the trash can. Lithium batteries
must be disposed of in accordance with local regulations concerning
special waste.
14.2.1.3 Installing the CMOS battery

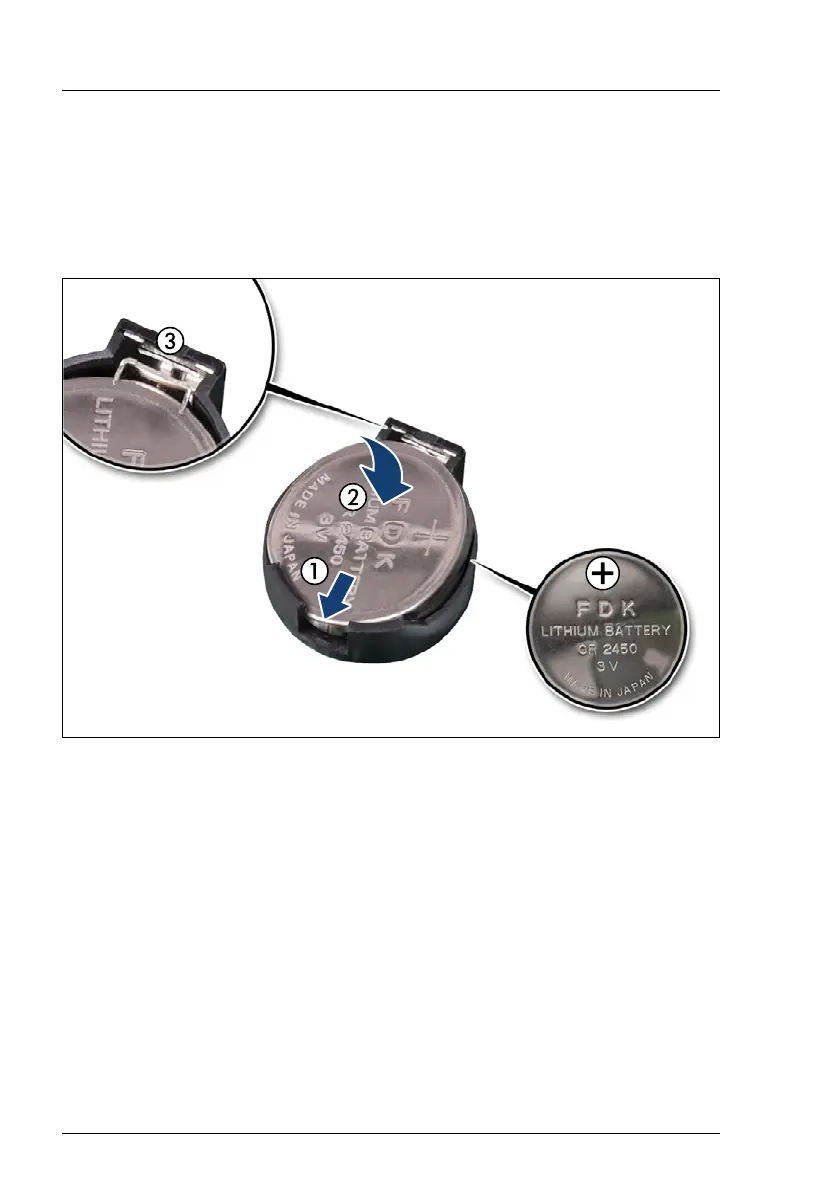

Figure 388: Installing the CMOS battery (e.g.)
Ê At a slight angle, fit the new CMOS battery into its socket as shown (1).
V CAUTION!
Ensure to insert the CMOS battery with the positive pole (label side)
facing up as shown (see close-up).
Ê Fold down the CMOS battery (2) until it locks in place.
Ê Ensure that the locking spring (3) is properly engaged.
14.2.1.4 Concluding steps
Ê Dispose of the CMOS battery in accordance with local regulations
concerning special waste.
