Front panel and external front connectors
13.6.1.4 Installing the front panel board

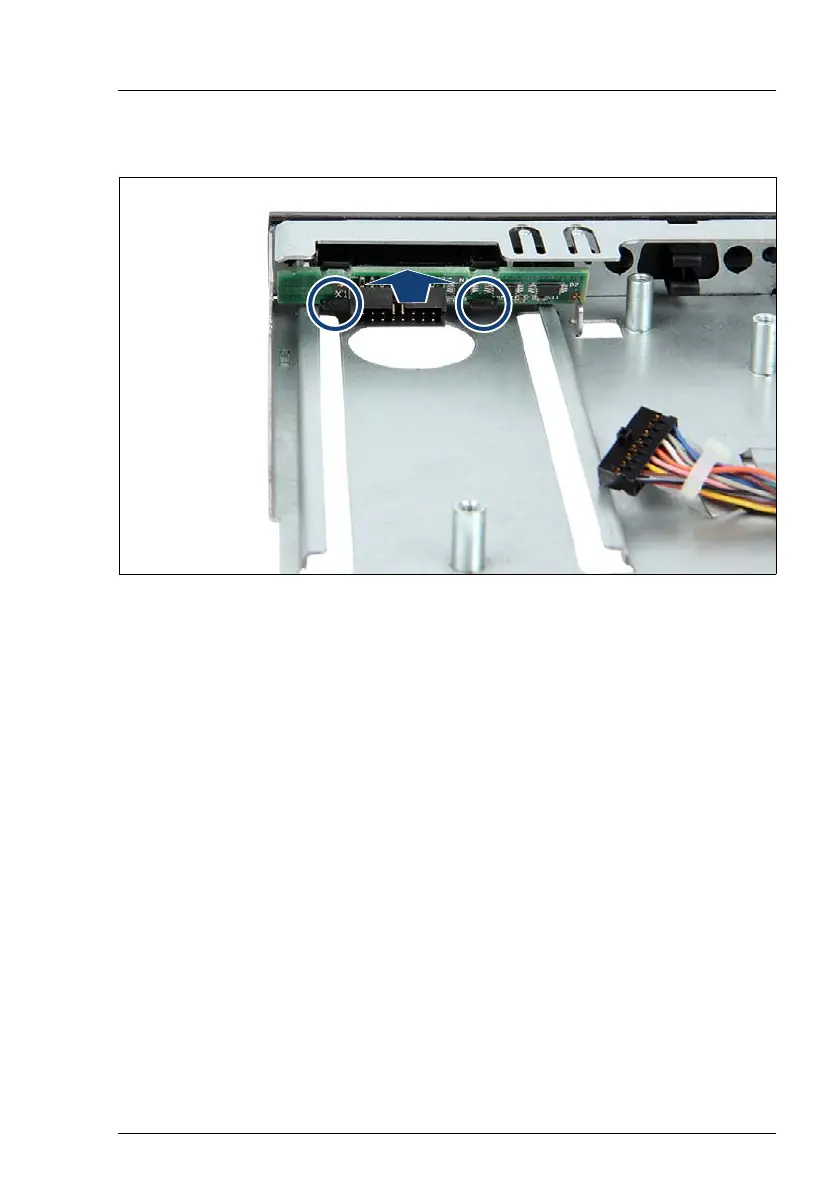

Figure 367: Installing the front panel board
Ê Insert the front panel board behind the two small hooks on the bottom (see
circles).
Ê Press the front panel board in the direction of the arrow until it snaps in
place.
13.6.1.5 Installing front panel module
Ê "Installing the front panel module" on page 483
13.6.1.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Verifying system information backup / restore" on page 105
