322 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.7.3.2 Removing the FBU holder from the air duct

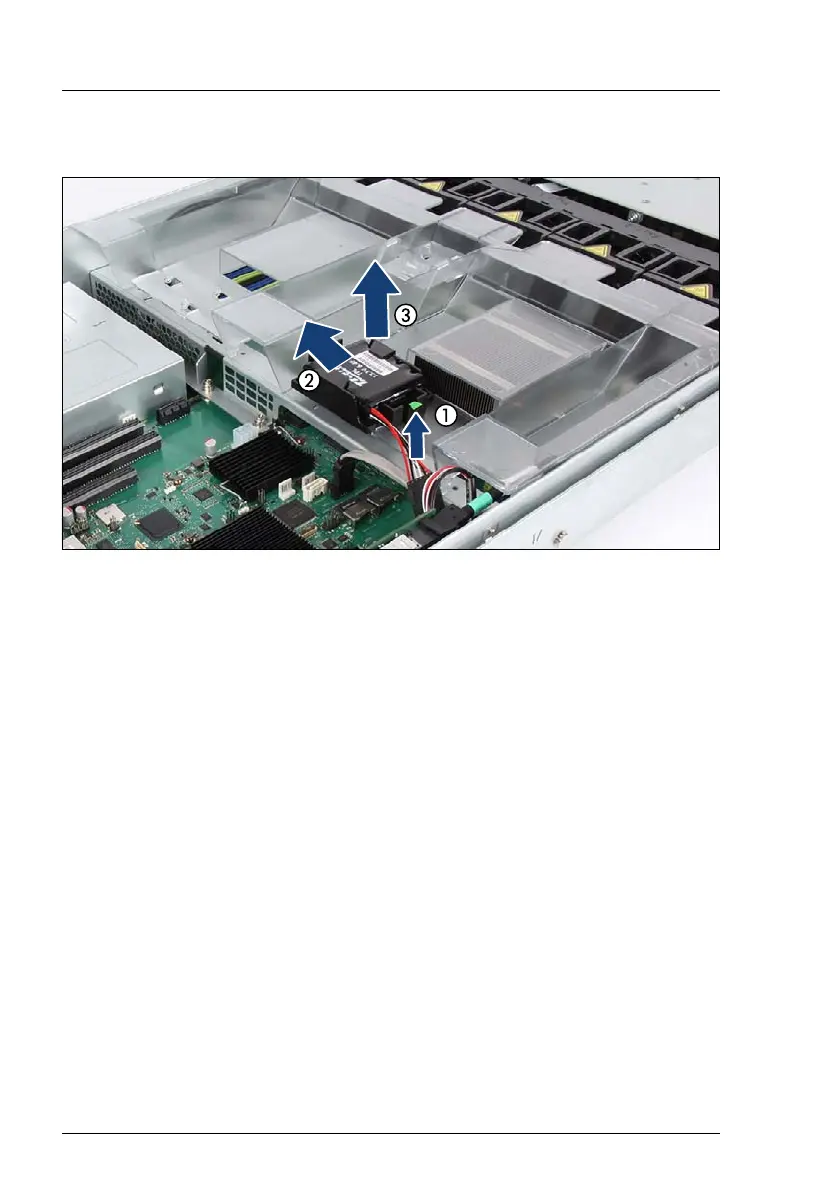

Figure 218: Removing the FBU holder from the air duct
Ê Lift up the green locking handle on the FBU holder (1) while sliding the FBU
holder to the left as far as it will go (2).
I After that, the hooks on the air duct will rest in the wide ends of the
keyhole slots on the holder.
Ê Lift the FBU holder from the air duct (3).
Ê Pull the FBU cable through the gap in the air duct.
