RX2540 M2 Upgrade and Maintenance Manual 493
Front panel and external front connectors
13.7.1.3 Preparing the front panel module

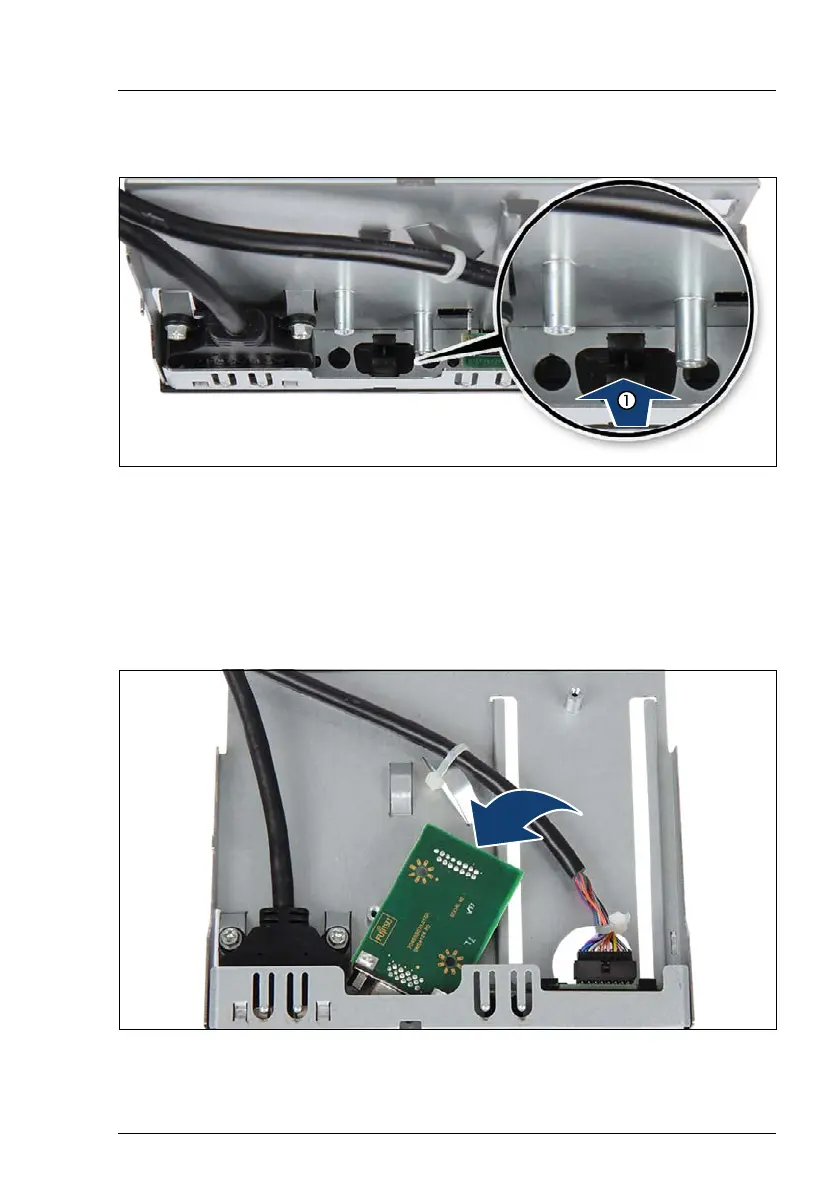

Figure 368: Removing the front VGA cover plate
Ê Insert a flat screw driver to disengage VGA cover plate from the front panel
cover (1).
Ê Pull the VGA cover plate out of the front panel module.
13.7.1.4 Installing the front VGA
Figure 369: Installing the front VGA card
Ê Insert the front VGA card as shown with the longer connector downward.
