Hard disk drives (HDD) and solid state drives (SSD)
7.4.3.3 Installing a 2.5-inch dummy module
V CAUTION!
If the removed HDD/SSD module is not replaced immediately, always
replace a dummy module into the unused HDD/SSD bay to comply with
applicable EMC regulations and satisfy cooling requirements.

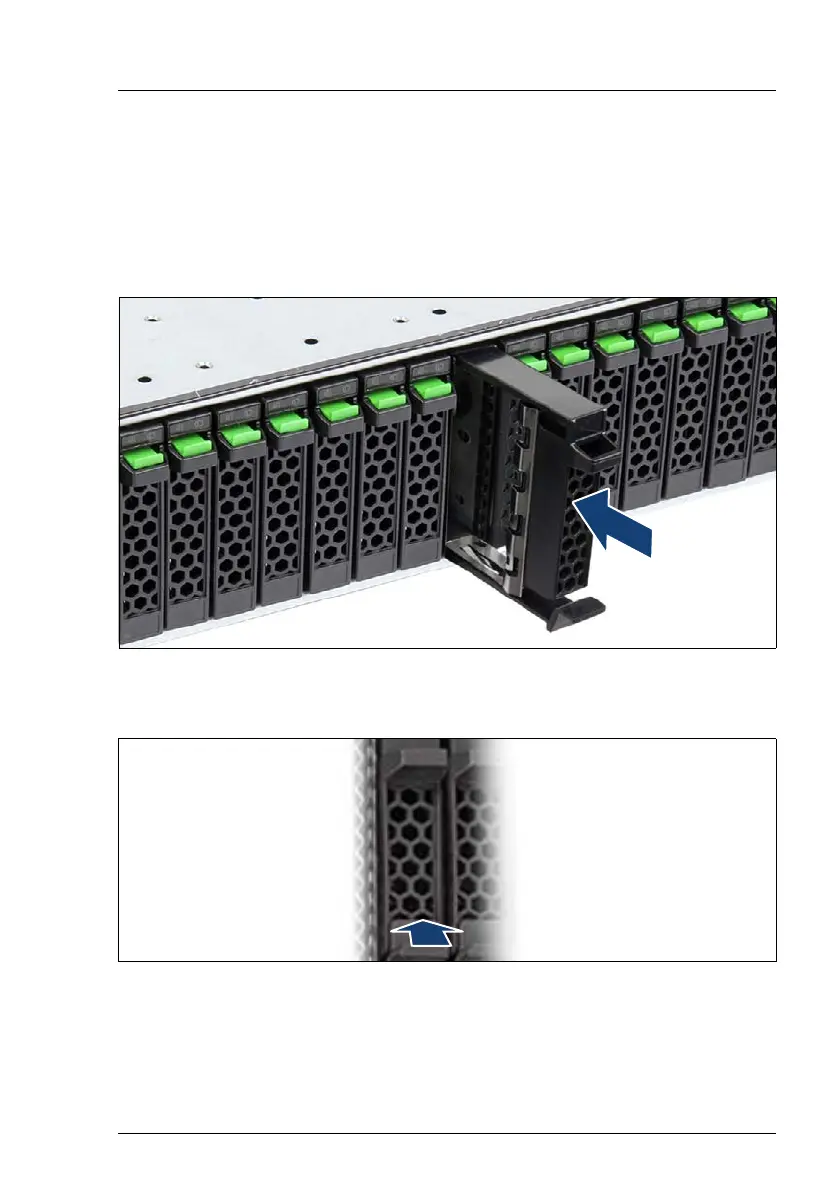

Figure 98: Installing a 2.5-inch dummy module
Ê Push the dummy module into the empty bay until it engages.
Figure 99: Installing dummy lock
I For 8x 2.5-inch HDD/SSD version and 8x 2.5-inch HDD/SSD + 4x PCIe
SSD it is necessary to install the dummy locks to all unused HDDs bays
that means without a backplane behind the bay (8 pieces or 4 pieces).
