RX2540 M2 Upgrade and Maintenance Manual 289
Expansion cards and backup units
8.6.1.8 Installing the riser module 1
– Install the riser module 1 as described in section "Installing the riser module
1 (FL)" on page 90.
For GPGPU except GPGPU M60/P100

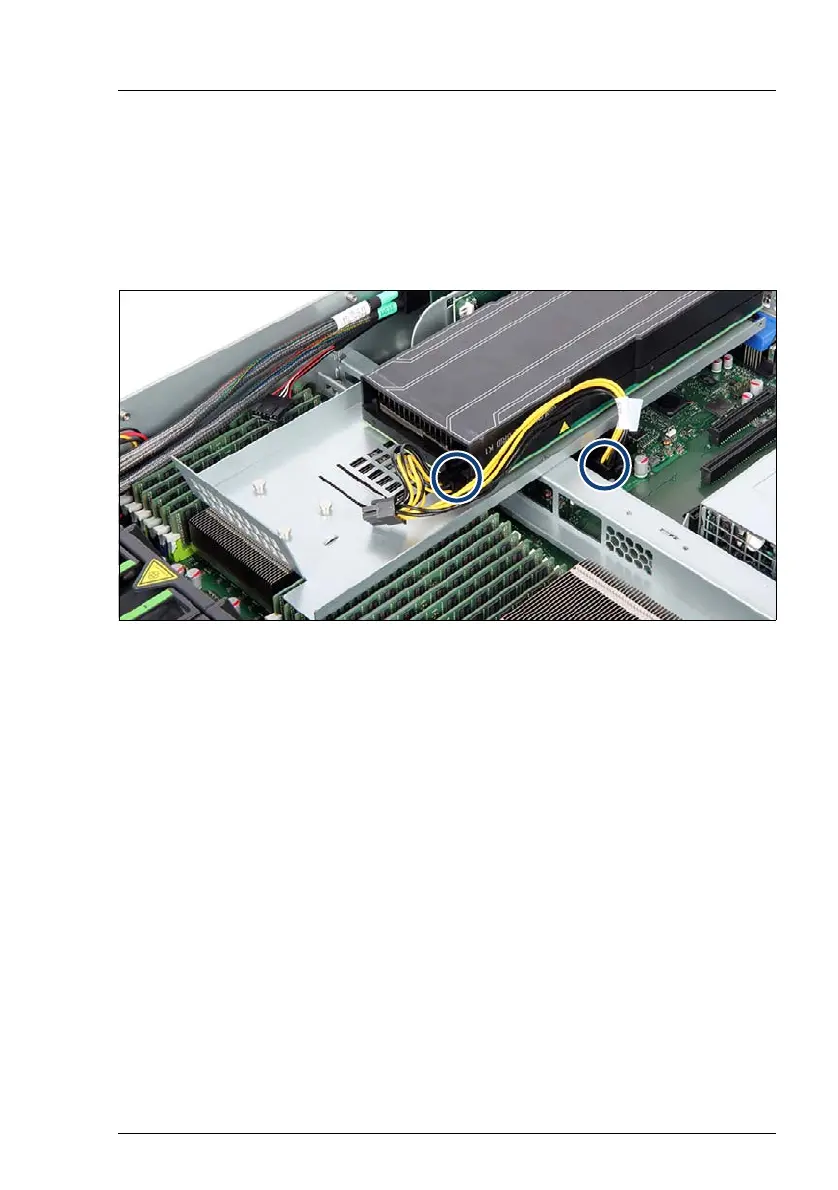

Figure 184: Connecting the power cable
Ê Connect the power cable to the power connector on the GPGPU card and
the connector PWR 12V 4 on the system board as shown.
Ê Route the power cable as shown.
