228 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)

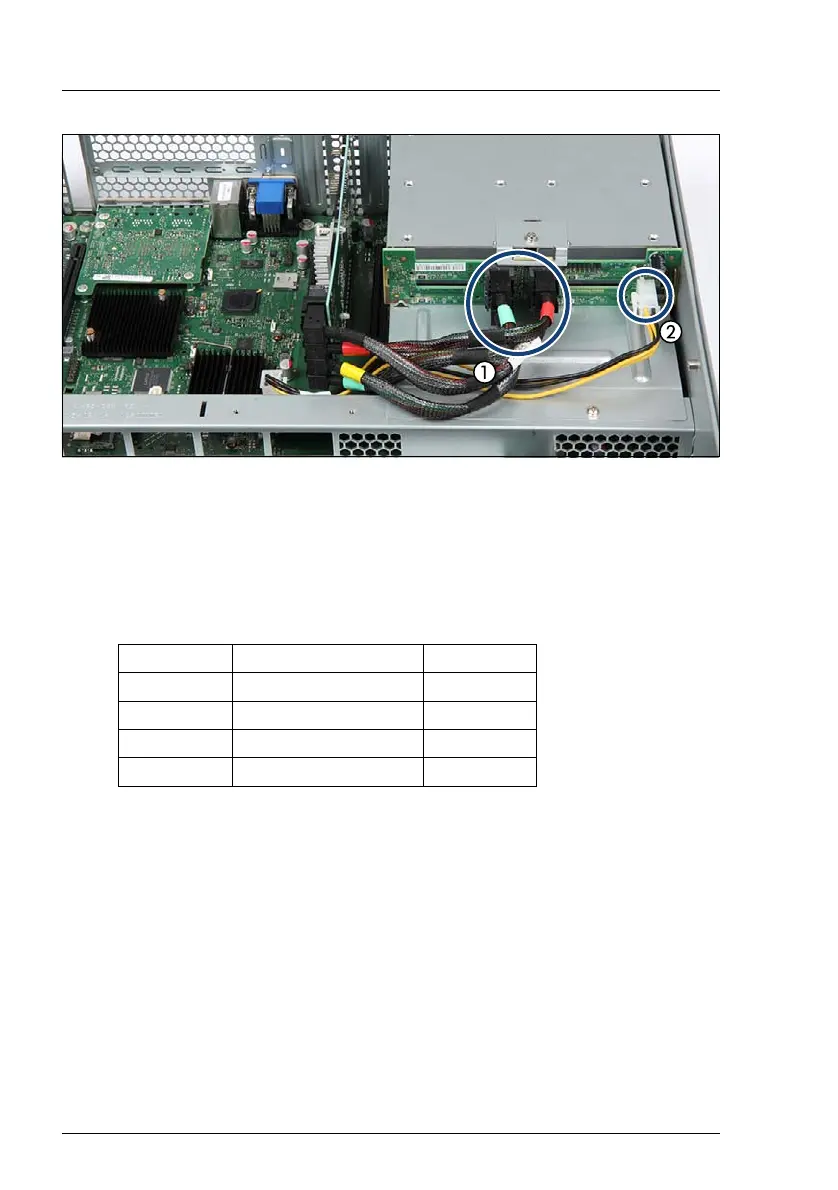

Figure 130: Connecting cables to the PCIe SSD backplane rear
Ê Connect the power cable (2) to the backplane.
Ê Connect the SAS cable(s), or PCIe cable(s) to the backplane.
I For PCIe cable:
I For a complete cabling overview, please refer to section "List of used
cables" on page 559.
7.6.1.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Installing 2.5-inch HDD/SSD modules" on page 193, see also figure 93 on
page 192
Ê "Connecting the power cord" on page 79
Plug Connector on bpl Color
P0 X1 black
P1 X2 red
P2 X3 yellow
P3 X4 green
