502 Upgrade and Maintenance Manual RX2540 M2
Front panel and external front connectors
13.8.2.3 Removing the front USB3.0 connector

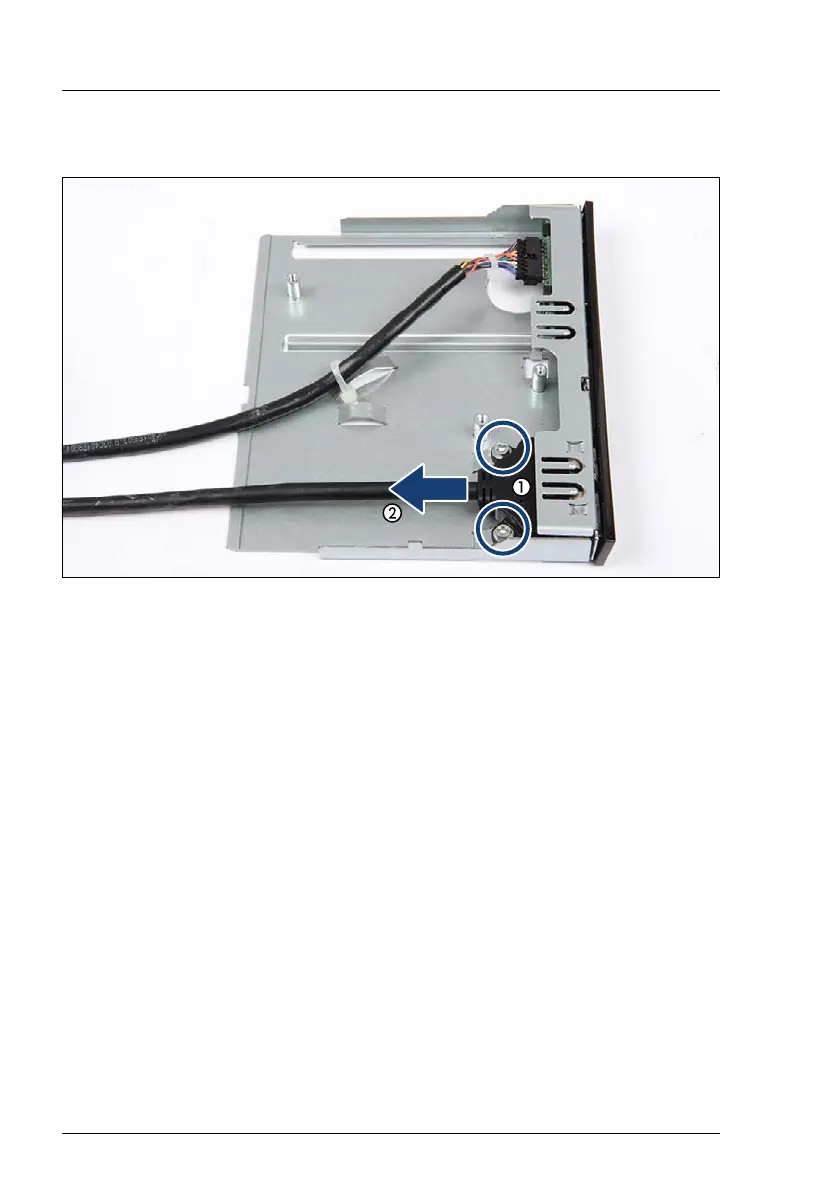

Figure 375: Removing the front USB3.0 connector
Ê Remove the two screws (1).
Ê Disconnect the front USB3.0 connector (2).
13.8.2.4 Installing the front panel module
Ê "Installing the front panel module" on page 483
13.8.2.5 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Resuming BitLocker functionality" on page 120
