198 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
I For further information, please refer to the "ServerView Suite RAID
Management" user guide and manuals of RAID controller.
7.4.3.2 Removing a 2.5-inch HDD/SSD module

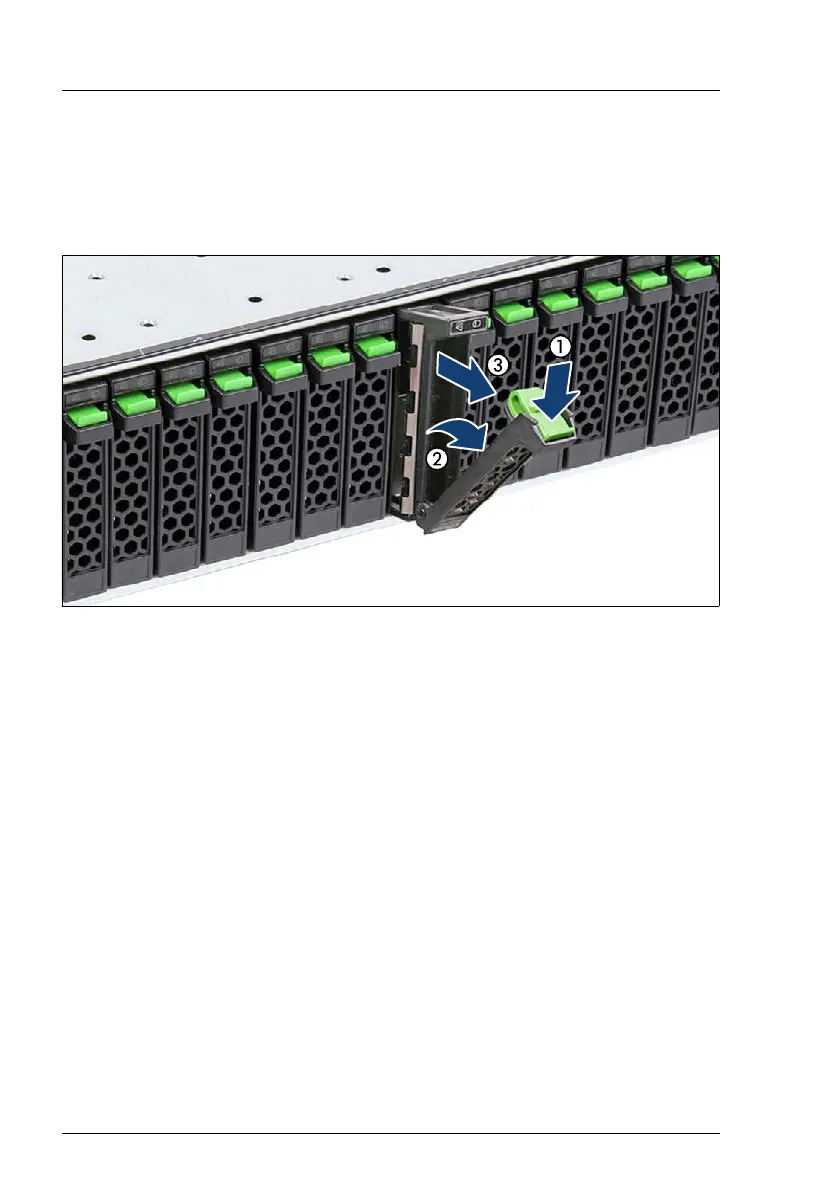

Figure 97: Removing a 2.5-inch HDD module
Ê Pinch the green locking clip (1) and open the locking lever (2)
Ê Pull the HDD/SSD module out a few centimeters (3).
Ê Wait about 30 seconds to allow the HDD to spin down.
I This is not necessary when removing an SSD.
I This period is necessary for the RAID controller to recognize that an
HDD module has been removed and for the HDD to come to a stop.
Ê Pull the HDD/SSD module completely out of its bay.
