RX2540 M2 Upgrade and Maintenance Manual 509
Front panel and external front connectors

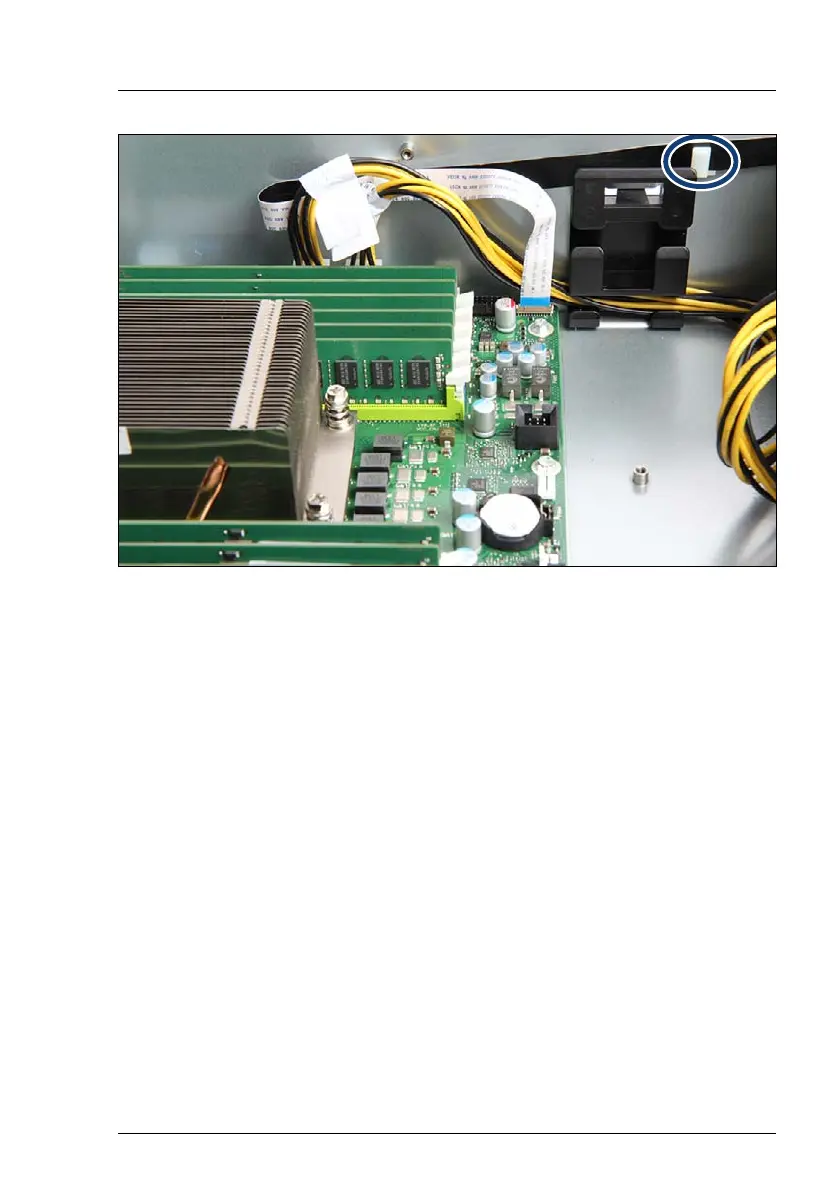

Figure 383: Connecting front panel cable
Ê Run the front panel cable through the cable clamp as shown.
13.9.1.3 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Verifying system information backup / restore" on page 105
Ê Store your server’s system information on the Chassis ID EPROM
integrated into the front panel board. For further information on how to obtain
and use the ChassisId_Prom Tool, refer to section "Using the Chassis ID
Prom Tool" on page 123.
Ê "Enabling SVOM boot watchdog functionality" on page 114
Ê "Resuming BitLocker functionality" on page 120
