RX2540 M2 Upgrade and Maintenance Manual 243
Expansion cards and backup units
8.2 Handling slot brackets
8.2.1 Installing a slot bracket
8.2.1.1 Installing a standard slot bracket

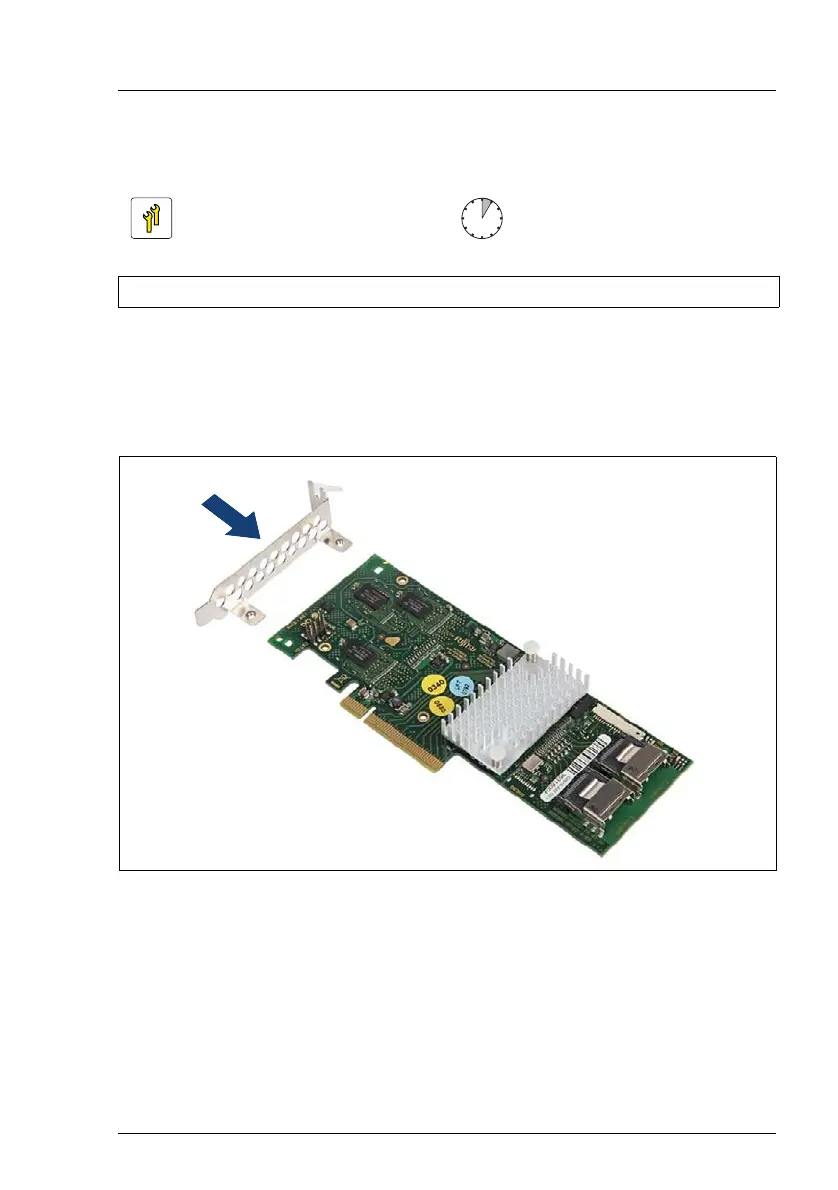

Figure 144: Installing a standard slot bracket (A)
Ê Place the controller on the mounting tabs of the slot bracket.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver / nut driver 5 mm
