448 Upgrade and Maintenance Manual RX2540 M2
12.5.2.1 Preliminary steps
Ê Ask the system administrator to eject all remaining backup or optical media
from the backup or ODD before removing it from the server.
Ê "Suspending BitLocker functionality" on page 95
Ê "Shutting down the server" on page 65
Ê "Disconnecting the power cord" on page 66
Ê "Getting access to the component" on page 68
Ê "Removing the fan box" on page 397
12.5.2.2 Removing the RDX drive

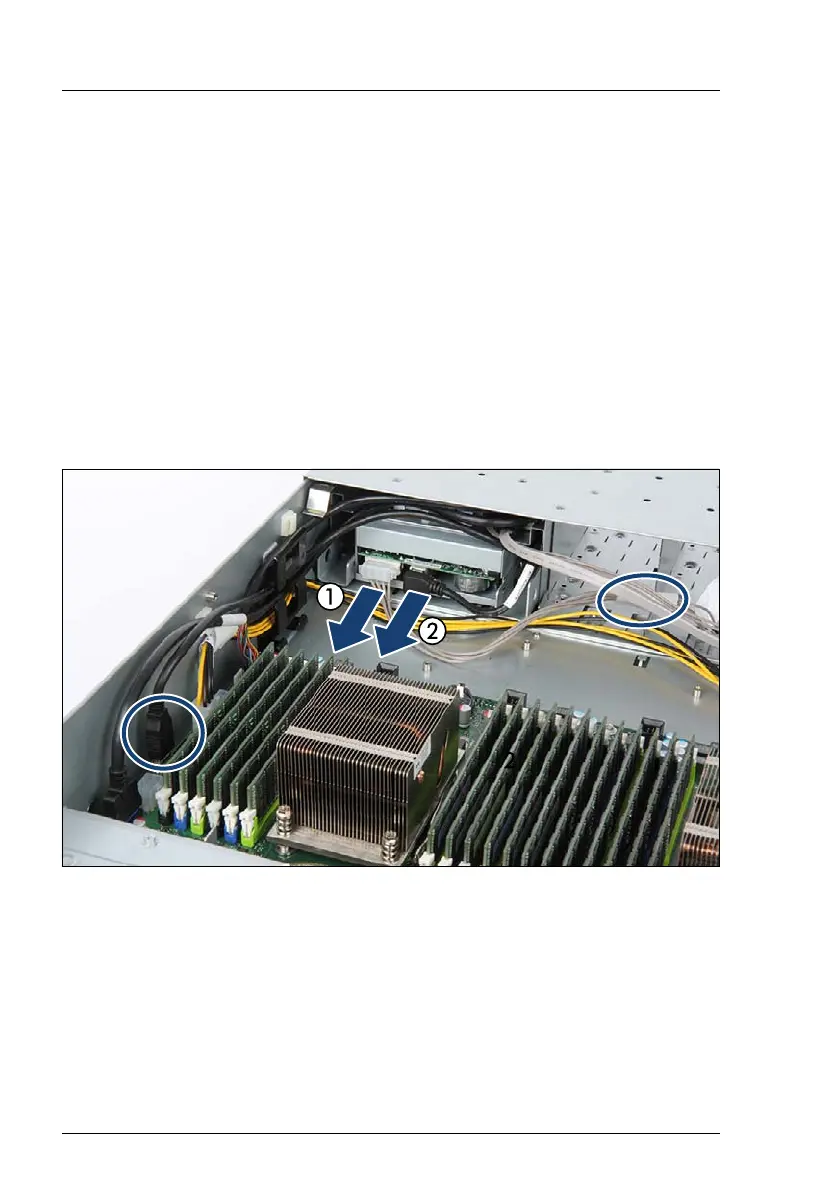

Figure 331: Disconnecting the cables
Ê Disconnect the connector (1) and (2).
I If you do not want to replace the RDX drive but remove it, you can
remove the USB cable C35 from the system board and the power
adapter cable C34 see circle.
Ê "Removing the front panel cage" on page 479
