194 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.4.2.2 Removing a 2.5-inch dummy module

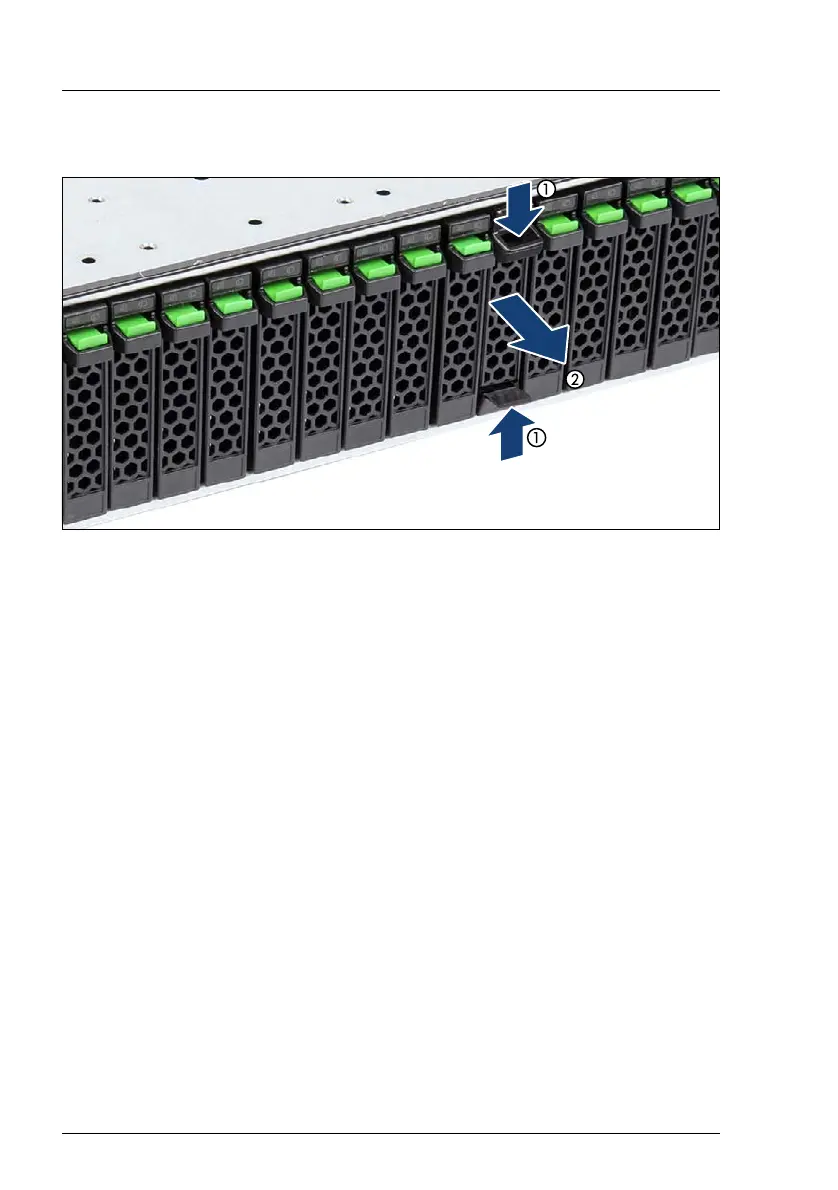

Figure 94: Removing a 2.5-inch dummy module
I Dummy modules have been installed into unused HDD/SSD bays.
Before installing an additional HDD/SSD, the dummy module needs to
be removed from the desired drive bay.
Ê Press on the locking clips of the dummy module to disengage the locking
mechanism (1).
Ê While keeping the locking clip pressed, pull the dummy module out of its bay
(2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
